規格
Brand
Schneider ElectricProduct Type
Contactor
Coil Voltage
24V dc
Number of Poles
3
Contact Voltage
690V ac
Contact Current
12A
Power Rating
5.5kW
Series
TeSys K
Mount Type
DIN Rail
Function
Motor Control
Normal State Configuration
3 NO
Number of Auxiliary Contacts
1
Auxiliary Contact Configuration
1 NO
Terminal Type
Screw
Operational Current Ie
12A
Minimum Operating Temperature
-25°C
Control Circuit Voltage Uc
24V dc
Contactor Application
Motor Control
Maximum Operating Temperature
50°C
Depth
57mm
Length
58mm
Standards/Approvals
CCC, CSA, EAC, IEC, RoHS, UL
Width
45mm
Better World Product
Yes
Pole and Throw Configuration
3
原產地
France
產品詳情

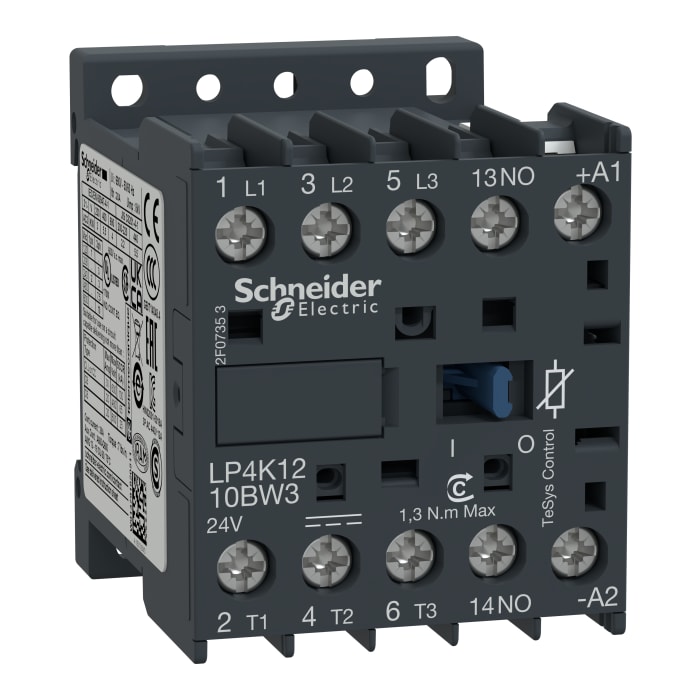

TeSys K Silent Miniature Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The LP4K range are low consumption DC operated contactors recommended for use in areas sensitive to noise and high interference mains supplies. The TeSys K contactors offer quick simple setup while maintaining compliance with international standards. A special armature structure design allows all devices in the range to have the same physical size and panel footprint for convenience.
醞釀。 創造。 合作
免費加入
無隱藏費用！
暫時無法取得庫存資訊。
1,091.00 MOP
1,090.99 MOP Each (不含稅)
1
1,091.00 MOP
1,090.99 MOP Each (不含稅)
