JST Crimp Spade Connector, 0.2mm² to 0.5mm², 26AWG to 22AWG, 3mm Stud Size Vinyl, Yellow

Name: JST Crimp Spade Connector, 0.2mm² to 0.5mm², 26AWG to 22AWG, 3mm Stud Size Vinyl, Yellow
Brand: JST
SKU: 6028391
Availability: LimitedAvailability

RS Stock No.: 602-8391Brand: JSTManufacturers Part No.: V0.5-3A

View all in Fork Terminals

Technical Document

Specifications

Brand

JST

Width

5mm

Insulation Material

Vinyl

Minimum Wire Size mm²

0.2mm²

Maximum Wire Size mm²

0.5mm²

Minimum Wire Size AWG

26AWG

Maximum Wire Size AWG

22AWG

Stud Size

3mm

Colour

Yellow

Overall Length

16.5mm

Country of Origin

Japan

Product details

JST Insulated Spade Tongue Crimp Terminals

A range of insulated spade tongue crimp terminals from JST made from tin-plated oxygen free copper.
JST part numbers Vxxx are straight-entry terminals with brazed seams
JST part numbers FVWSxxx are flared-entry terminals with butted seams

• Vinyl insulation
• Straight or Flared entry types available
• UL Listed E42024
• CSA Certified LR20812
• RoHS Compliant

JST Insulated Crimp Terminals

You may be interested in

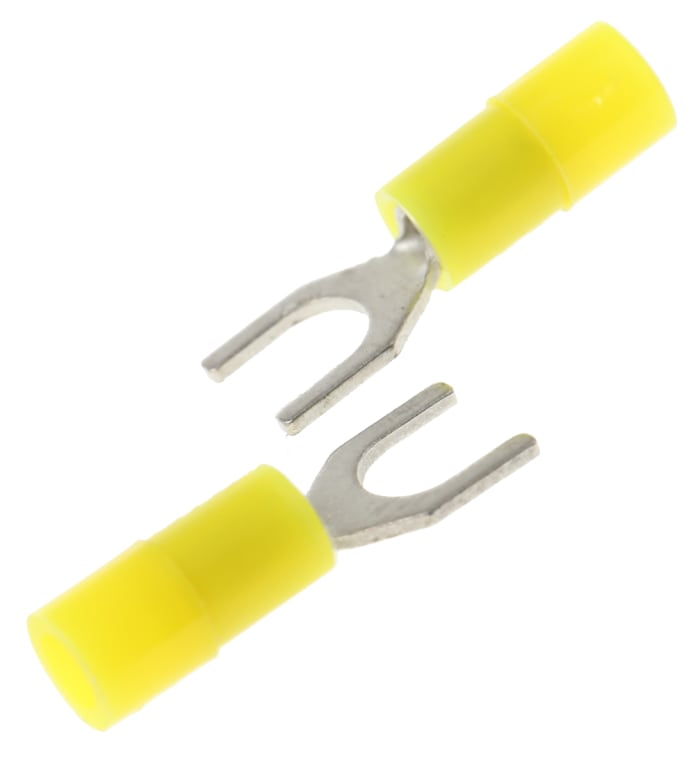

RS PRO Insulated Crimp Spade Connector, 0.2mm² to 0.5mm², 26AWG to 22AWG, M3 Stud Size Nylon, YellowBrand: RS PRO

121.70 MOPEach (In a Pack of 100) (ex VAT)

114.50 MOP

114.53 MOP 1 Bag of 100 (ex VAT)

JST Crimp Spade Connector, 0.2mm² to 0.5mm², 26AWG to 22AWG, 3mm Stud Size Vinyl, Yellow

114.50 MOP

114.53 MOP 1 Bag of 100 (ex VAT)

JST Crimp Spade Connector, 0.2mm² to 0.5mm², 26AWG to 22AWG, 3mm Stud Size Vinyl, Yellow

Stock information temporarily unavailable.

quantity	Unit price
1 - 9	114.53 MOP
10 - 24	109.94 MOP
25 - 99	105.36 MOP
100+	103.06 MOP

JST Insulated Spade Tongue Crimp Terminals

• Vinyl insulation
• Straight or Flared entry types available
• UL Listed E42024
• CSA Certified LR20812
• RoHS Compliant
