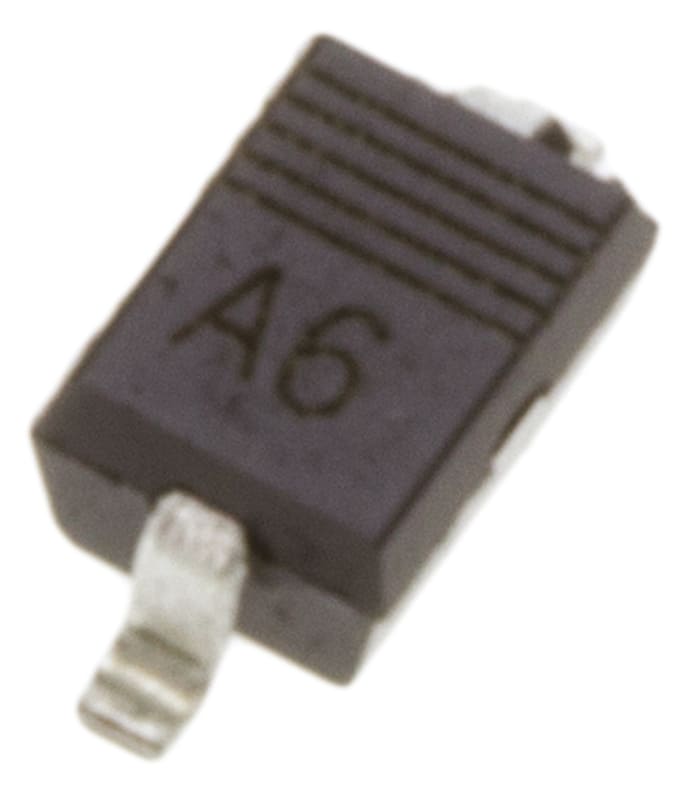

onsemi Switching Diode, 2-Pin SOD-323 BAS16HT1G
Technical Document
Specifications
Brand
onsemiDiode Configuration
Single
Mounting Type
Surface Mount
Number of Elements per Chip
1
Package Type
SOD-323
Diode Technology
Silicon Junction
Maximum Forward Voltage Drop
1.25V
Pin Count
2
Minimum Operating Temperature
-55 °C
Maximum Operating Temperature
+150 °C
Length
1.7mm
Width
1.25mm
Height
0.9mm
Dimensions
0.9 x 1.7 x 1.25mm
Country of Origin
Czech Republic
Product details
Small Signal Switching Diodes, ON Semiconductor
Standards
Products with S-prefixed Manufacturer Part Nos are AEC-Q101 automotive qualified.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
426.40 MOP
0.142 MOP Each (On a Reel of 3000) (ex VAT)
3000
426.40 MOP
0.142 MOP Each (On a Reel of 3000) (ex VAT)
Stock information temporarily unavailable.
3000
| quantity | Unit price | Per Reel |
|---|---|---|
| 3000 - 3000 | 0.142 MOP | 426.42 MOP |
| 6000 - 9000 | 0.138 MOP | 413.64 MOP |
| 12000+ | 0.134 MOP | 401.28 MOP |
