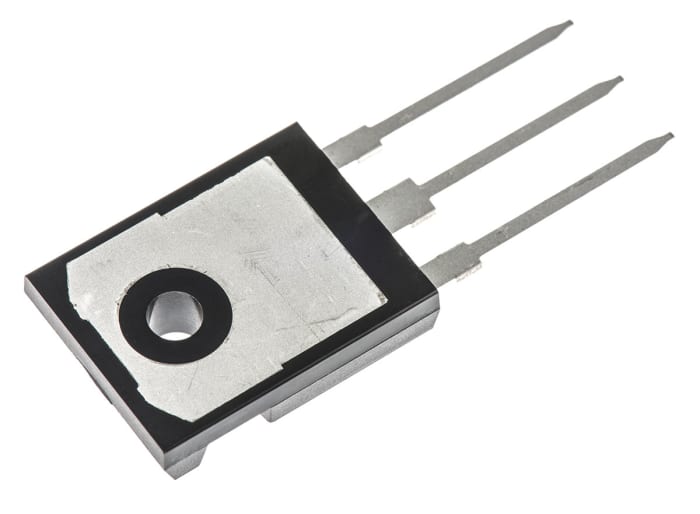

STMicroelectronics STGW40H65DFB, Type N-Channel IGBT, 80 A 650 V, 3-Pin TO-247, Through Hole

Name: STMicroelectronics STGW40H65DFB, Type N-Channel IGBT, 80 A 650 V, 3-Pin TO-247, Through Hole
Brand: STMicroelectronics
SKU: 7925795
Availability: LimitedAvailability

RS Stock No.: 792-5795Brand: STMicroelectronicsManufacturers Part No.: STGW40H65DFB

View all in IGBTs

Technical Documents

Specifications

Brand

STMicroelectronics

Maximum Continuous Collector Current Ic

80A

Product Type

IGBT

Maximum Collector Emitter Voltage Vceo

650V

Maximum Power Dissipation Pd

283W

Package Type

TO-247

Mount Type

Through Hole

Channel Type

Type N

Pin Count

Maximum Gate Emitter Voltage VGEO

±20 V

Maximum Collector Emitter Saturation Voltage VceSAT

2.3V

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

175°C

Height

20.15mm

Standards/Approvals

Lead (Pb) Free package, ECOPACK

Series

Automotive Standard

Product Details

IGBT Discretes, STMicroelectronics

IGBT Discretes & Modules, STMicroelectronics

The Insulated Gate Bipolar Transistor or IGBT is a three-terminal power semiconductor device, noted for high efficiency and fast switching. The IGBT combines the simple gate-drive characteristics of the MOSFETs with the high-current and low–saturation-voltage capability of bipolar transistors by combining an isolated gate FET for the control input, and a bipolar power transistor as a switch, in a single device.
