Technical Documents
Specifications
Brand
BinderNumber of Contacts
8
Product Type
Circular Connector
Mount Type
Panel Mount
Connector Size
Miniature
Current
2A
Plug/Socket
Socket
Contact Gender
Female
IP Rating
IP67
Series
770
Orientation
Straight
Voltage
175.0V
Mating Type
Bayonet
Shell Size
15 mm
Minimum Operating Temperature
-25°C
Termination Type
Solder
Maximum Operating Temperature
85°C
Housing Material
Polymer
Standards/Approvals
No
Contact Plating
Gold
Contact Material
Bronze
Country of Origin
Germany
Product Details

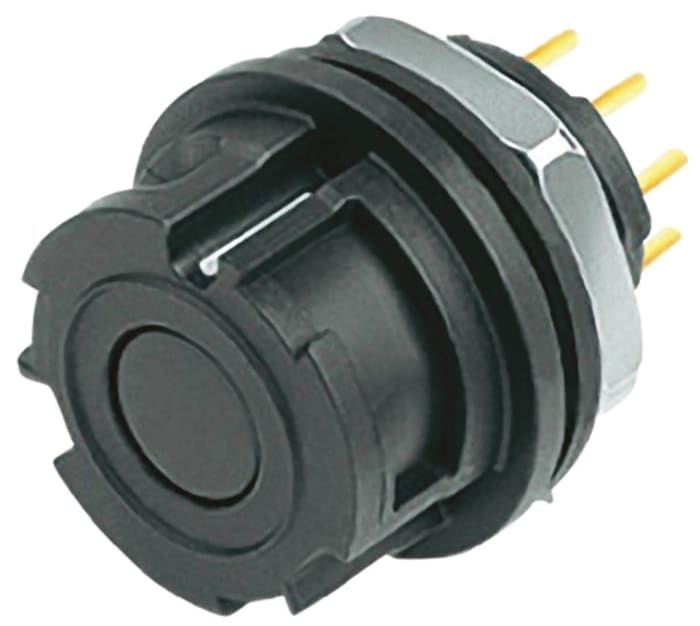

Binder 770 Series NCC panel mount minature connectors are a new connector family featuring an entirely new IP67 rated and touch-proof design, these connectors are offered with solder or dip terminals. Female 770 series connectors remain IP67 rated when not mated due to their unique self sealing design also featuring a simple and reliable bayonet locking system, quick and easy assembly and over 5000 mating cycles.
Series 770 is a new connector family featuring an entirely new IP67 rated and touch-proof design. The panel-mount receptacles have an IP67 rating when unmated by covering the contacts with a spring-enforced door.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
114.60 MOP
114.59 MOP Each (ex VAT)
1
114.60 MOP
114.59 MOP Each (ex VAT)
Stock information temporarily unavailable.
1
| quantity | Unit price |
|---|---|
| 1 - 4 | 114.59 MOP |
| 5 - 14 | 112.22 MOP |
| 15 - 24 | 108.72 MOP |
| 25 - 49 | 106.14 MOP |
| 50+ | 103.87 MOP |
