Technical Documents
Specifications
Brand
BinderNumber of Contacts
8
Product Type
Circular Connector
Mount Type
Cable
Connector Size
Subminiature
Current
1A
Plug/Socket
Plug
Contact Gender
Female
IP Rating
IP67
Orientation
Straight
Series
620
Voltage
60.0V
Mating Type
Snap-In
Shell Size
11.5
Minimum Operating Temperature
-25°C
Termination Type
Solder
Housing Material
Polymer
Maximum Operating Temperature
85°C
Standards/Approvals
No
Contact Plating
Gold
Contact Material
Bronze
Country of Origin
Germany
Product Details

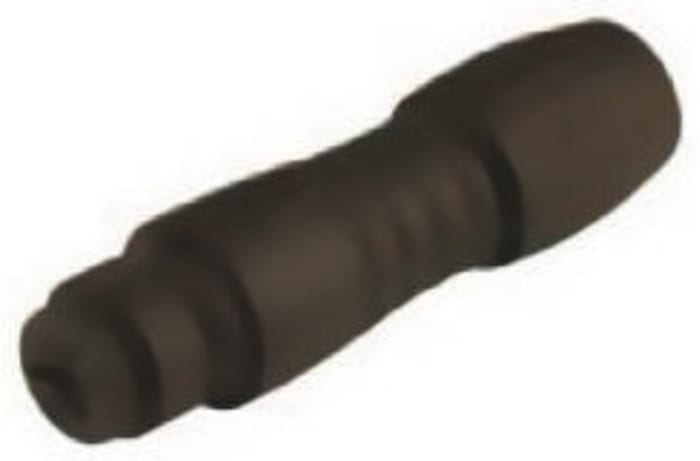

Subminiature snap-in female cable connector with IP67 ingress protection and internal strain relief. This subminiature snap-in female cable connector has solder terminations, a 3 to 5mm cable outlet and accepts a maximum wire gauge of 0.25mm2.
Series 620 connectors provide a cost-effective solution for high-performance applications in medical electronics and commercial portable devices. IP 67 protection in mated condition. Larger version is Series 720
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
126.90 MOP
126.85 MOP Each (Supplied in a Bag) (ex VAT)
Production pack (Bag)
1
126.90 MOP
126.85 MOP Each (Supplied in a Bag) (ex VAT)
Stock information temporarily unavailable.
Production pack (Bag)
1
| quantity | Unit price |
|---|---|
| 1 - 9 | 126.85 MOP |
| 10 - 49 | 123.04 MOP |
| 50 - 99 | 119.23 MOP |
| 100 - 249 | 116.65 MOP |
| 250+ | 114.18 MOP |
