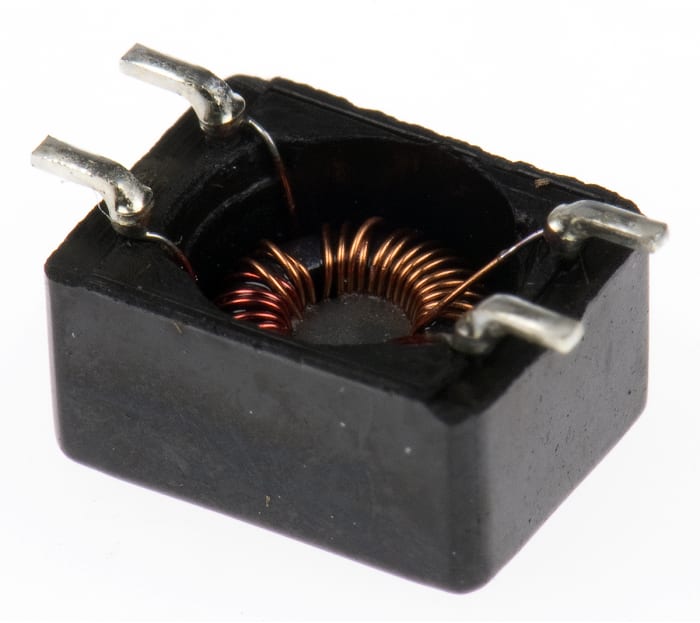

Bourns, DR331, 0331 Unshielded Surface Mount Common Mode Choke with a Ferrite Core, 51 μH ±25 % 500 mA Idc

Name: Bourns, DR331, 0331 Unshielded Surface Mount Common Mode Choke with a Ferrite Core, 51 μH ±25 % 500 mA Idc
Brand: Bourns
SKU: 7361046
Availability: LimitedAvailability

RS Stock No.: 736-1046Brand: BournsManufacturers Part No.: DR331-513AE

View all in Surface Mount Inductors

Technical Documents

Specifications

Brand

Bourns

Product Type

Surface Mount Common Mode Choke

Inductance

51μH

Maximum DC Current

500mA

Package/Case

0331

Packaging

Reel

Length

7.3mm

Automotive Standard

Shielding

Minimum Operating Temperature

-40°C

Maximum DC Resistance

300mΩ

Maximum Operating Temperature

135°C

Series

DR331

Inductance Tolerance

±25 %

Standards/Approvals

UL, RoHS

Core Material

Ferrite

Height

4.7mm

Depth

5.4mm

Termination Style

Solder

Maximum Self Resonant Frequency

1GHz

Moulded

Yes

Inductor Construction

Wirewound

Country of Origin

Taiwan, Province Of China

Product Details

Bourns DR331 Series SMD Common Mode Chokes

RoHS compliant
Bifilar or sector windings
Wide frequency range over 1000MHz
Rated current 0.2 to 0.5A
Open construction is more economical than DR332 Series
Applications in the suppression of EMI in data and signal lines
