Technical Documents
Specifications
Brand

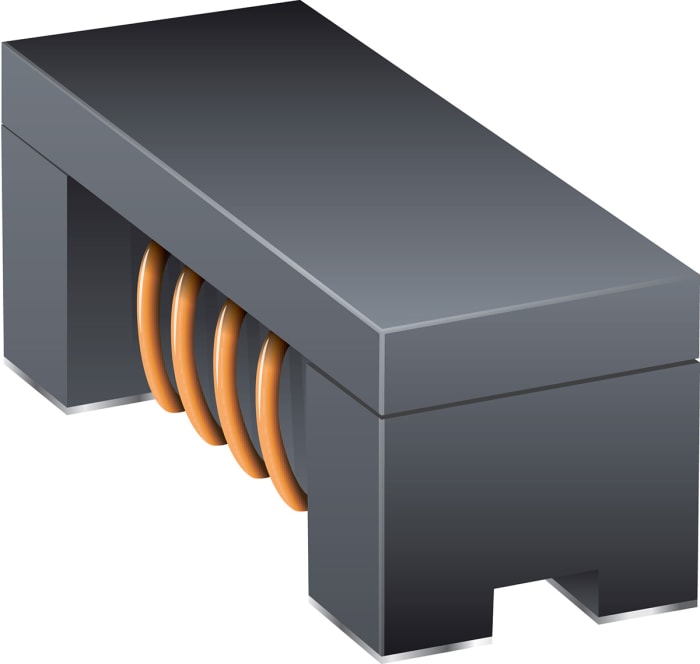

BournsProduct Type
Multilayer Surface Mount Inductor
Maximum DC Current
230mA
Packaging
2000 pieces per 7 in Reel
Length
3.2mm
Automotive Standard
AEC-Q200
Shielding
Yes
Maximum DC Resistance
1Ω
Pin Count
4
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
125°C
Inductance Tolerance
±25 %
Series
SRF3216
Termination Style
Tin Plated Red Copper(DSn)
Height
2mm
Depth
1.6mm
Standards/Approvals
95, RoHS Recast 2011, RoHS Directive 2002, Halogen Free, EC, EU
Core Material
Ferrite
Product Details
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
4,953.10 MOP
2.477 MOP Each (On a Reel of 2000) (ex VAT)
2000
4,953.10 MOP
2.477 MOP Each (On a Reel of 2000) (ex VAT)
Stock information temporarily unavailable.
2000
| quantity | Unit price | Per Reel |
|---|---|---|
| 2000 - 2000 | 2.477 MOP | 4,953.10 MOP |
| 4000 - 6000 | 2.402 MOP | 4,804.50 MOP |
| 8000+ | 2.33 MOP | 4,660.33 MOP |
