Broadcom 2.6 V Green, Red, Blue LED PLCC Surface ASMB-MTB ASMB-MTB1-0B3A2

Broadcom ASMB-MTB Series LED, 2.8x3.2mm Lens Dimensions, 115° Viewing Angle - ASMB-MTB1-0B3A2

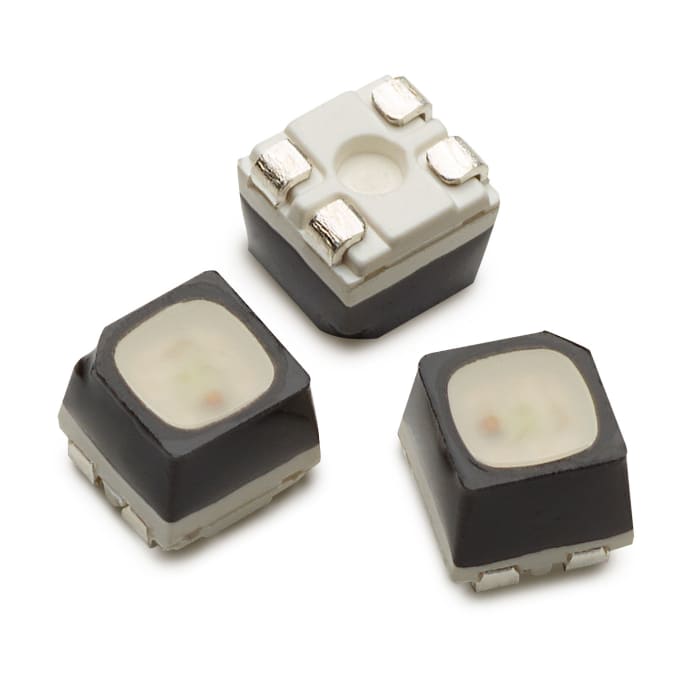

This LED is a surface-mounted PLCC component designed to provide multi-colour signalling in electronic assemblies. It delivers green, red and blue emission from a Compact rectangular clear lens, intended for integration onto assemblies where controlled optical output and moderate power handling are required.

Features and Benefits:

• 115° viewing angle delivers wide-area visibility
  Maximum forward current 25mA supports common drive schemes
  Forward voltage 2.6V enables predictable drive calculations
  Peak luminous output 3550mcd provides high-intensity indication
  Maximum power dissipation 90mW limits thermal loading on board

Applications

• Suitable for indicator arrays requiring wide viewing angles
  Ideal for status LEDs in handheld instrumentation
  Used with automated pick-and-place from tape and reel
  Can be used for multi-colour signalling in control panels

How is the component packaged for automated assembly?

It is supplied on tape and reel to facilitate high-volume placement.

What electrical constraint limits continuous operation?

Continuous use should account for the maximum power dissipation of 90mW to prevent overheating.

What pin configuration does it use for board layout?

The device presents four pins and contains three individual LEDs within the package.

Which colour has a specified dominant wavelength?

The red emitter has a dominant Wavelength of 629nm.

Are there any industry moisture sensitivity considerations?

The device meets JEDEC MSL 3 moisture sensitivity classification.
