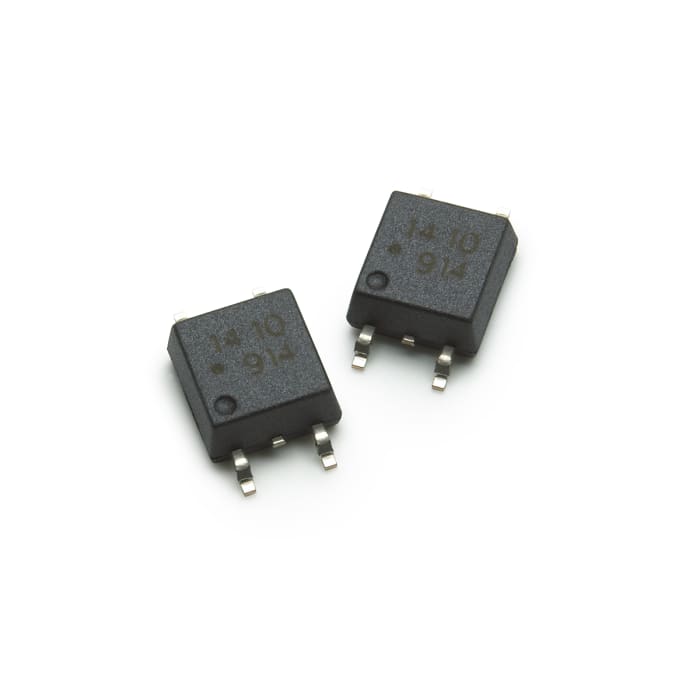

Broadcom ASSR-1410 Series Solid State Relay, 0.6 A Load, Surface Mount, 60 V Load, 1.7V Control

The Broadcom ASSR-14XX solid state relay (SSR) series consist of an AlGaAs infrared light-emitting diode (LED) input stage optically coupled to a high-voltage output detector circuit. The detector consists of a high-speed photovoltaic diode array and driver circuitry to switch on/off two discrete high voltage MOSFETs.

• Compact Solid-State Bi-directional Signal Switch
• Single and Dual Channel Normally-off Single-Pole-Single-Throw (SPST) Relay
• 60V Output Withstand Voltage
• 0.6A or 1.2A Current Rating (See Schematic for ASSR-1411 Connections A & B)
• Low Input Current: CMOS Compatibility
• Low On-Resistance: 0.2Ω Typical for DC-only, 0.7Ω Typical for AC/DC
• Very High Output Off-state Impedance: 10 Teraohms Typical
• High Speed Switching: 0.1ms (Ton), 0.02ms (Toff) Typical
• High Transient Immunity: Greater than 1kV/μs
