HLCP-A100-BC000 Broadcom Light Bar LED Display Red 7.5mcd

RS Stock No.: 195-013Brand: BroadcomManufacturers Part No.: HLCP-A100-BC000
brand-logo
View all in LED Displays

Technical Document

Specifications

Brand

Broadcom

Product Type

LED Display

Display Type

Light Bar

LED Colour

Red

Number of Segments

1

Dominant Wavelength

637 nm

Mount Type

Through Hole

External Width

10.2mm

External Height

5mm

External Depth

6.2mm

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

100°C

Luminous Intensity

7.5mcd

Colour of Face

White

Standards/Approvals

RoHS

Forward Voltage

1.8V

Power Dissipation

37mW

Forward Current

45mA

Product details

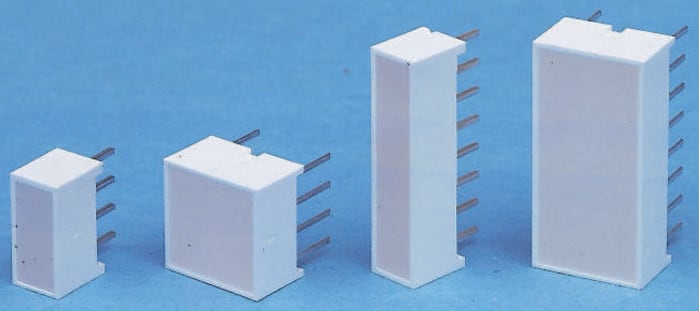

Broadcom HLCP-X100 and HLMP-2XXX Light Bar Arrays

The HLCP-X100 and HLMP-2XXX range of LED light bars are available in a range of sizes and colours. These LED light bars are ideal for applications which require a bright and uniform light.
HLCP-X100 and HLMP-2XXX light bars have either single or segmented light emitting areas which offer a good on-off contrast. Suitable applications for the HLCP-X100 and HLMP-2XXX light bars include; telecommunications indicators, front panel status indicators and bar graphs.

Features of the HLCP-X100 and HLMP-2XXX LED light bars:
Rectangular LES (single or segment)
Uniform light emitting area
X-Y stackable
Flush mountable

Broadcom Light Bar Arrays
