Technical Documents
Specifications
Brand
BroadcomProduct Type
LED Display
Display Type
Light Bar
LED Colour
Yellow
Number of Segments
1
Dominant Wavelength
585nm
Character Width
8.89mm
Character Height
19.5mm
Mount Type
Through Hole
External Width
8.9mm
External Height
6.2mm
External Depth
10.2mm
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
85°C
Luminous Intensity
38mcd
Colour of Face
White
Standards/Approvals
Lead (Pb) Free, RoHS
Forward Voltage
2.1V
Forward Current
20mA
Product Details

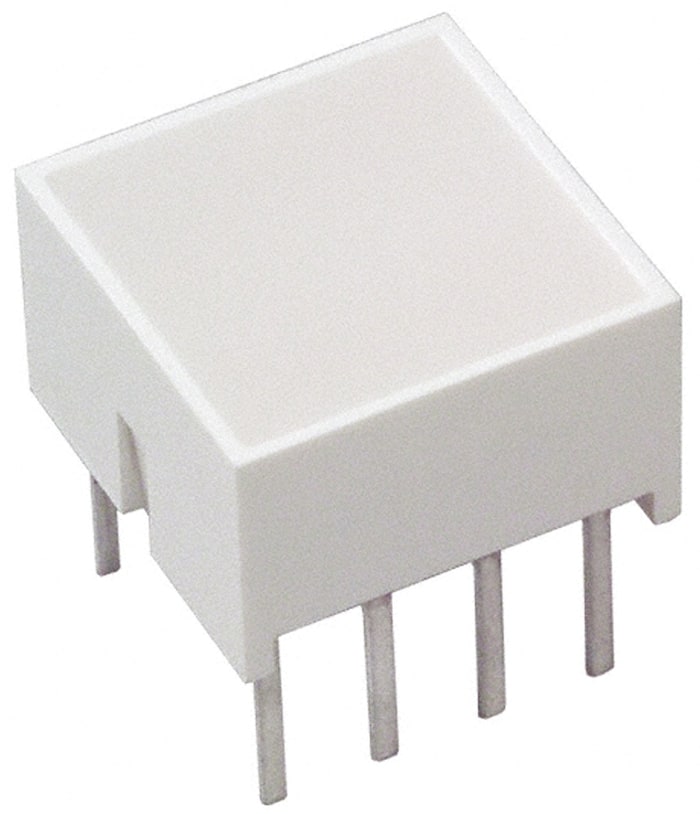

The HLCP-X100 and HLMP-2XXX range of LED light bars are available in a range of sizes and colours. These LED light bars are ideal for applications which require a bright and uniform light.
HLCP-X100 and HLMP-2XXX light bars have either single or segmented light emitting areas which offer a good on-off contrast. Suitable applications for the HLCP-X100 and HLMP-2XXX light bars include; telecommunications indicators, front panel status indicators and bar graphs.
Observe Anti-static precautions when handling devices.
Stock information temporarily unavailable.
164.50 MOP
41.117 MOP Each (Supplied in a Tube) (ex VAT)
Production pack (Tube)
4
164.50 MOP
41.117 MOP Each (Supplied in a Tube) (ex VAT)
Stock information temporarily unavailable.
Production pack (Tube)
4
| quantity | Unit price | Per Tube |
|---|---|---|
| 4 - 76 | 41.117 MOP | 164.47 MOP |
| 80 - 156 | 40.473 MOP | 161.89 MOP |
| 160+ | 39.623 MOP | 158.49 MOP |
