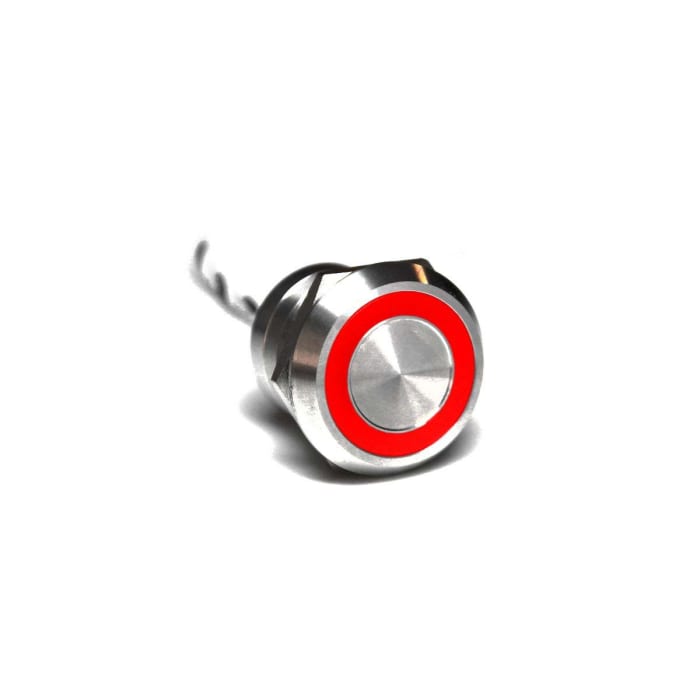

Bulgin Capacitive switch Momentary NC Illuminated, Green, Red, SPST NC, IP68, IP69K Stainless Steel

RS Stock No.: 204-7883Brand: BulginManufacturers Part No.: MC25MCSGR
brand-logo
View all in Capacitive Switches

Technical Document

Specifications

Brand

Bulgin

Switch Operation

Momentary

Product Type

Capacitive switch

Switch Type

Capacitive

Switch Function

NC

LED Colour

Green, Red

Housing Material

Stainless Steel

Illuminated

Yes

Maximum Input Voltage

24V

Output Type

SPST NC

Housing Colour

Silver

Minimum Input Voltage

12V

Actuator Colour

Silver

IP Rating

IP68, IP69K

Series

MC25MCSGR

Minimum Operating Temperature

-25°C

Contact Material

Stainless Steel

Maximum Operating Temperature

55°C

Standards/Approvals

RoHS

Current Rating

500 mA

Country of Origin

China

Stock information temporarily unavailable.

23,019.70 MOP

383.662 MOP Each (In a Box of 60) (ex VAT)

Bulgin Capacitive switch Momentary NC Illuminated, Green, Red, SPST NC, IP68, IP69K Stainless Steel

60

Available in multiples of 60
6023,019.70 MOP
12045,026.50 MOP
18067,539.70 MOP
24088,119.70 MOP
300110,149.60 MOP
360132,179.60 MOP
420154,209.50 MOP
480176,239.40 MOP
540198,269.30 MOP
600220,299.30 MOP
660242,329.20 MOP
720264,359.10 MOP
780286,389.00 MOP
840308,419.00 MOP
900330,448.90 MOP

23,019.70 MOP

383.662 MOP Each (In a Box of 60) (ex VAT)

Bulgin Capacitive switch Momentary NC Illuminated, Green, Red, SPST NC, IP68, IP69K Stainless Steel

Stock information temporarily unavailable.

60

Available in multiples of 60
6023,019.70 MOP
12045,026.50 MOP
18067,539.70 MOP
24088,119.70 MOP
300110,149.60 MOP
360132,179.60 MOP
420154,209.50 MOP
480176,239.40 MOP
540198,269.30 MOP
600220,299.30 MOP
660242,329.20 MOP
720264,359.10 MOP
780286,389.00 MOP
840308,419.00 MOP
900330,448.90 MOP

quantityUnit pricePer Box
60 - 60383.662 MOP23,019.72 MOP
120 - 180375.221 MOP22,513.23 MOP
240+367.165 MOP22,029.93 MOP
