Technical Documents
Specifications
Brand
CelducMaximum Load Current
25mA
Product Type
Solid State Relay
Mount Type
DIN Rail
Maximum Load Voltage
32V
Minimum Control Voltage
180V ac
Maximum Control Voltage
280Vrms
Series
SE
Terminal Type
Screw
IP Rating
IP20
Switching Function
Zero Cross Switching
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
90°C

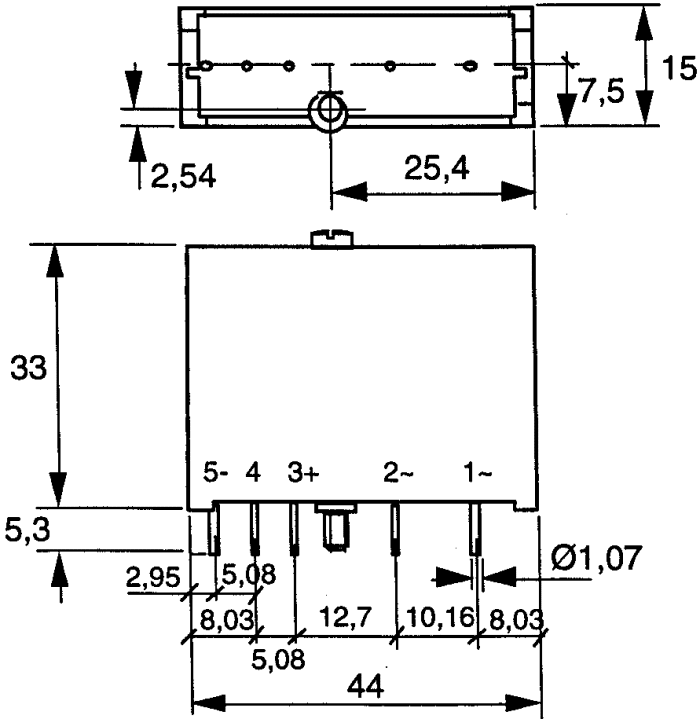

Length
44mm
Height
33mm
Standards/Approvals
Certified for Canada
Width
15mm
Off State Leakage Current
0.1mA
Output Type
Bipolar Transistor
Country of Origin
France
Product Details
Stock information temporarily unavailable.
1,076.90 MOP
1,076.93 MOP Each (ex VAT)
1
1,076.90 MOP
1,076.93 MOP Each (ex VAT)
Stock information temporarily unavailable.
1
| quantity | Unit price |
|---|---|
| 1 - 4 | 1,076.93 MOP |
| 5 - 9 | 1,044.64 MOP |
| 10 - 24 | 1,012.32 MOP |
| 25 - 49 | 990.78 MOP |
| 50+ | 969.26 MOP |
