Technical Documents
Specifications
Brand

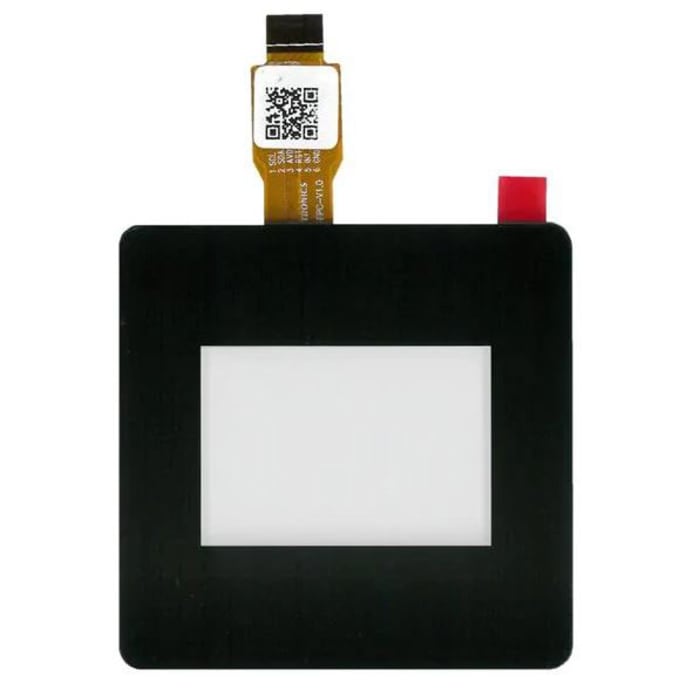

Display VisionsProduct Type
Touch Screen Overlay
Viewing Area Dimensions
25 x 34 mm
External Width
25mm
Current
25A
Voltage
3.3V
Sensor Type
Capacitive
Termination Type
Solder
Standards/Approvals
No
Series
EA DOG
Country of Origin
China
Product Details
The Electronic Assembly EA DOG series presents the worlds first display series which will run on 3.3 V systems without auxiliary power. It is extremely compact at 66 x 40 mm at the standard font size of 4.8 mm (4 x 10). It is ultra-flat at 2.0 mm without backlight or 5.8 mm including LED backlight and it has 4-bit, 8-bit SPI and I²C interface. It can be easily installed by simply soldering into the board.
Stock information temporarily unavailable.
1,255.30 MOP
251.05 MOP Each (In a Bag of 5) (ex VAT)
5
1,255.30 MOP
251.05 MOP Each (In a Bag of 5) (ex VAT)
Stock information temporarily unavailable.
5
| quantity | Unit price | Per Bag |
|---|---|---|
| 5 - 5 | 251.05 MOP | 1,255.25 MOP |
| 10 - 15 | 244.785 MOP | 1,223.92 MOP |
| 20+ | 240.993 MOP | 1,204.96 MOP |
