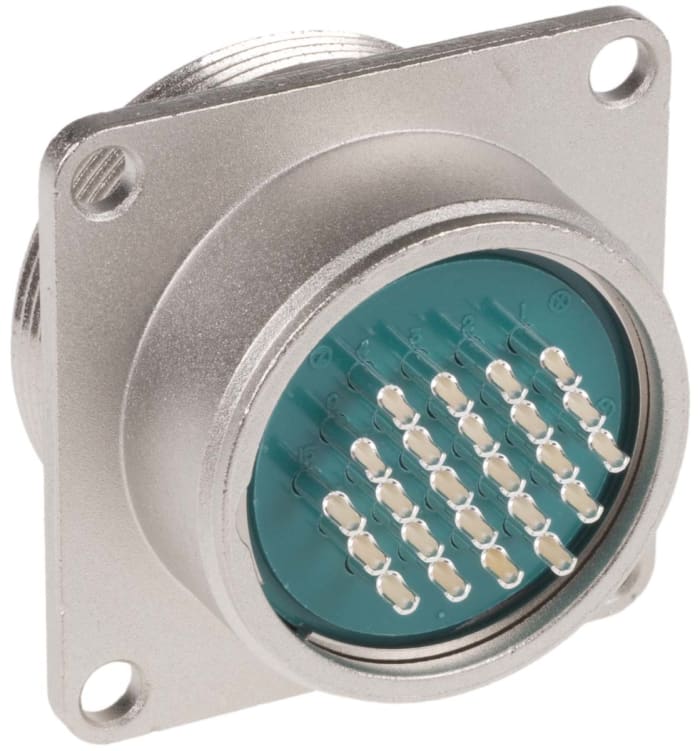

JAE Circular Connector, 24 Contacts, Panel Mount, Miniature Connector, Socket, Male, SRCN Series

Name: JAE Circular Connector, 24 Contacts, Panel Mount, Miniature Connector, Socket, Male, SRCN Series
Brand: JAE
SKU: 6909161
Availability: LimitedAvailability

RS Stock No.: 690-9161Brand: JAEManufacturers Part No.: SRCN2A25-24P

View all in Industrial Circular Connectors

Technical Documents

Specifications

Brand

JAE

Number of Contacts

Product Type

Circular Connector

Mount Type

Panel Mount

Current

Connector Size

Miniature

Plug/Socket

Socket

Contact Gender

Male

Series

SRCN

Orientation

Straight

Voltage

250.0, 350.0V

Mating Type

Threaded

Shell Size

Minimum Operating Temperature

-25°C

Termination Type

Solder

Housing Material

Aluminium Alloy

Maximum Operating Temperature

85°C

Standards/Approvals

Pole Format

Contact Plating

Silver

Contact Material

Copper

Product Details

Receptacles, Pin inserts

JAE SRCN Range

SRCN series connectors are lightweight, general purpose circular connectors.

Miniature, lightweight, solid construction
Highly reliable contact finish
Stable connections
Positive polarization with five keys and keyways
