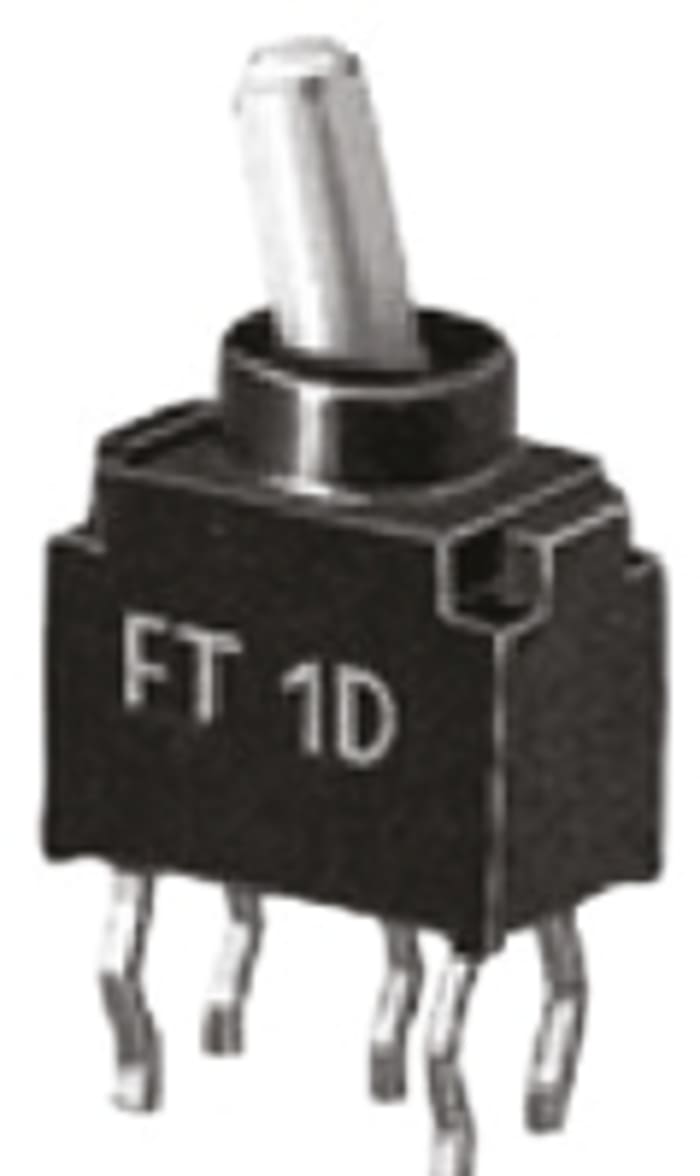

KNITTER-SWITCH Toggle Switch, PCB Mount, On-On, SPDT, Through Hole Terminal
Technical Document
Specifications
Brand
KNITTER-SWITCHContact Configuration
SPDT
Switch Operation
On-On
Contact Current Rating
400 mA @ 20 V dc
Mounting Type
PCB
Terminal Type
Through Hole
Actuator Length
3.8mm
Actuator Material
PES
Contact Material
Gold Plated Phosphor Bronze
Contact Resistance
0.1Ω
Minimum Operating Temperature
-40°C
Operating Temperature Range
-40 → +85°C
Mechanical Life
30000Operations
Maximum Operating Temperature
+85°C
Country of Origin
China
Product details
Knitter Switch Microminiature Toggle Switches - FT Series
The FT toggle switch series are micro miniature devices take up just 4.5 mm x 7 mm of PCB space. Available in single or double pole versions, typical applications include medical devices and test and measurement equipment.
ESD resistance: > 8 kV ( between lever and terminals )
Maximum contact rating; 0,4 VA at 28 V dc
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
35.70 MOP
35.66 MOP Each (ex VAT)
1
35.70 MOP
35.66 MOP Each (ex VAT)
Stock information temporarily unavailable.
1
Stock information temporarily unavailable.
| quantity | Unit price |
|---|---|
| 1 - 49 | 35.66 MOP |
| 50 - 99 | 34.62 MOP |
| 100 - 249 | 33.49 MOP |
| 250 - 499 | 33.18 MOP |
| 500+ | 32.36 MOP |
