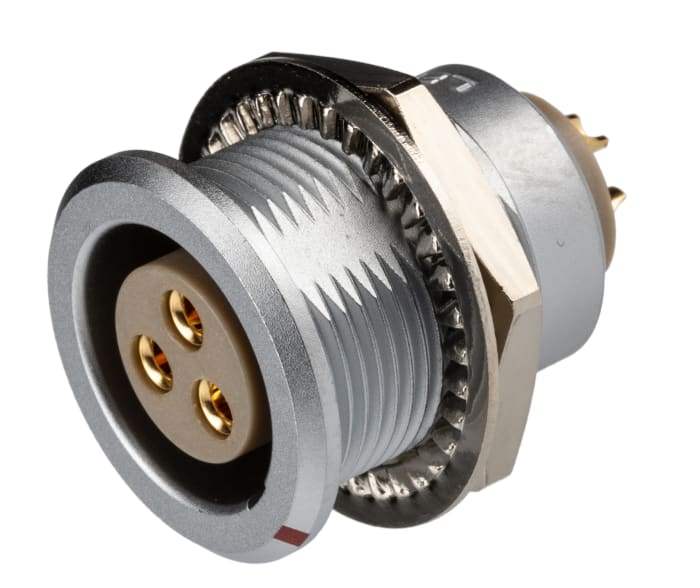

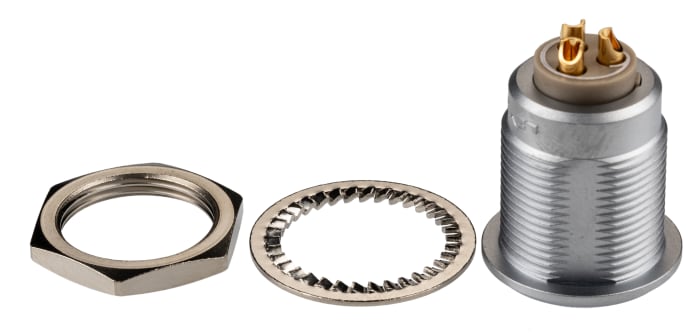

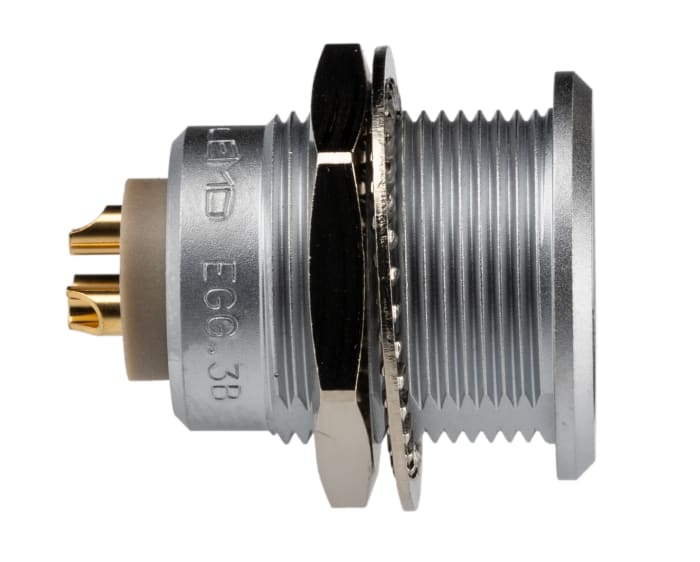

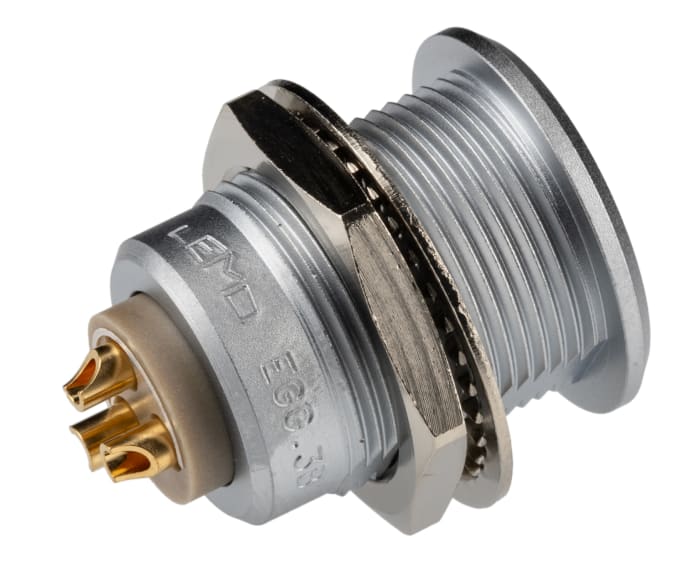

LEMO Circular Connector, 3 Contacts, Panel Mount, 22 mm Connector, Socket, Female, IP50, 3B Series

Name: LEMO Circular Connector, 3 Contacts, Panel Mount, 22 mm Connector, Socket, Female, IP50, 3B Series
Brand: LEMO
SKU: 3246990
Availability: LimitedAvailability

RS Stock No.: 324-6990Brand: LEMOManufacturers Part No.: EGG.3B.303.CLL

View all in Industrial Circular Connectors

Technical Documents

Specifications

Brand

Lemo

Number of Contacts

Product Type

Circular Connector

Mount Type

Panel Mount

Connector Size

22 mm

Current

25A

Plug/Socket

Socket

Contact Gender

Female

IP Rating

IP50

Series

Orientation

Straight

Voltage

2700V

Mating Type

Push Pull

Shell Size

Minimum Operating Temperature

-55°C

Termination Type

Solder

Maximum Operating Temperature

250°C

Housing Material

Brass

Pole Format

Standards/Approvals

Contact Plating

Gold

Contact Material

Brass

Country of Origin

Switzerland

Product Details

B series straight sockets

Enclosures with positioning guide and
foolproof system.
Fitted with female contacts for soldering.

2B Series - Metal

Free plugs (15.0mm dia.) which mate with panel mount sockets all incorporating PEEK insulating material. Terminations are by solder bucket.,The free plugs are supplied with collets to take a maximum cable diameter of 9mm. Smaller collets are available separately. For construction of connector see 0B free plugs.

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

Download and use our DesignSpark software for your PCB and 3D Mechanical designs
View and contribute website content and forums
Download 3D Models, Schematics and Footprints from more than a million products

Click here to find out more

View all in Industrial Circular Connectors

Stock information temporarily unavailable.

546.20 MOP

546.16 MOP Each (ex VAT)

LEMO Circular Connector, 3 Contacts, Panel Mount, 22 mm Connector, Socket, Female, IP50, 3B Series

546.20 MOP

546.16 MOP Each (ex VAT)

LEMO Circular Connector, 3 Contacts, Panel Mount, 22 mm Connector, Socket, Female, IP50, 3B Series

Stock information temporarily unavailable.

quantity	Unit price
1 - 4	546.16 MOP
5 - 24	530.91 MOP
25 - 49	508.86 MOP
50+	494.85 MOP
