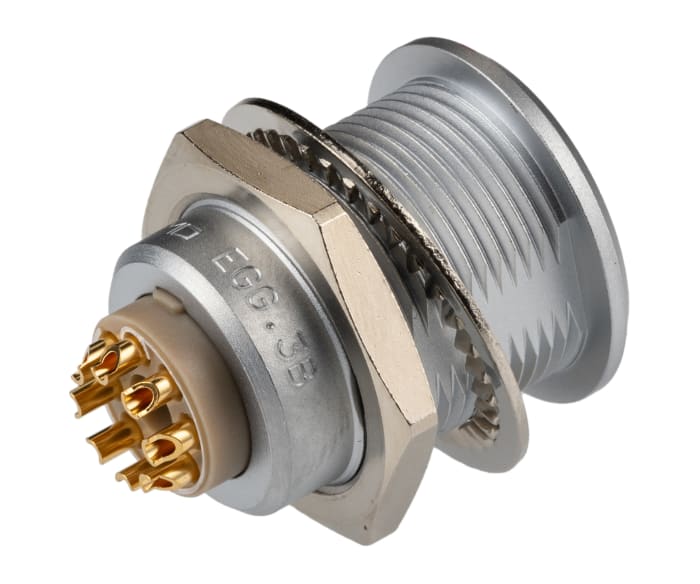

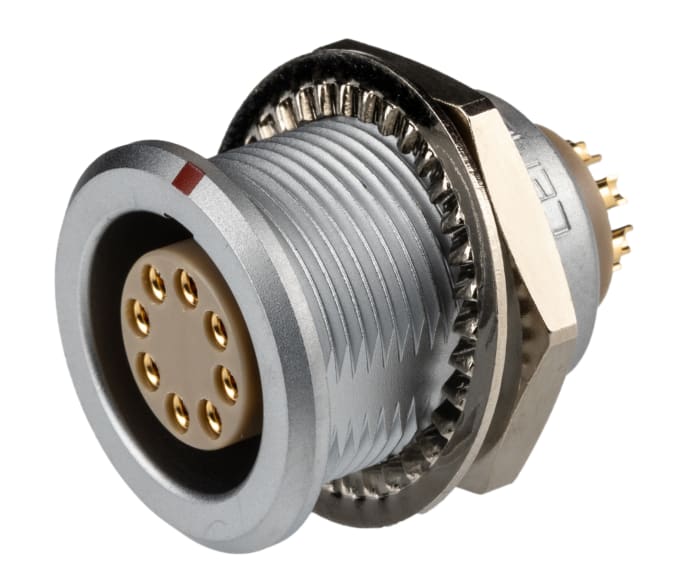

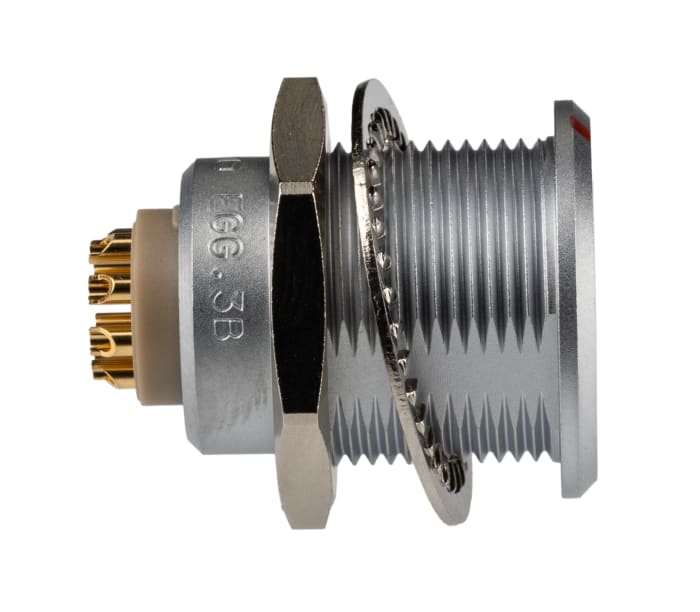

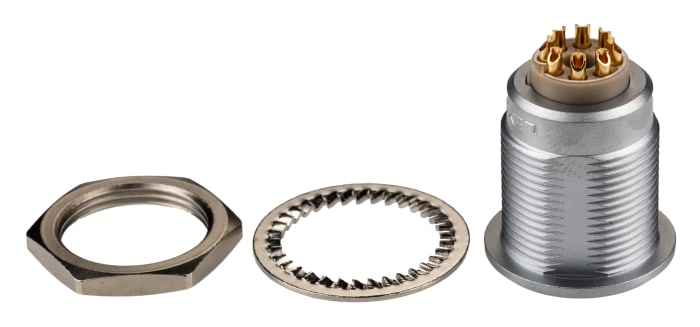

LEMO Circular Connector, 8 Contacts, Panel Mount, 22 mm Connector, Socket, Female, IP50, 3B Series

Name: LEMO Circular Connector, 8 Contacts, Panel Mount, 22 mm Connector, Socket, Female, IP50, 3B Series
Brand: LEMO
SKU: 3247022
Availability: LimitedAvailability

RS Stock No.: 324-7022Brand: LEMOManufacturers Part No.: EGG.3B.308.CLL

View all in Industrial Circular Connectors

Technical Documents

Specifications

Brand

Lemo

Number of Contacts

Product Type

Circular Connector

Mount Type

Panel Mount

Connector Size

22 mm

Current

13A

Plug/Socket

Socket

Contact Gender

Female

IP Rating

IP50

Series

Orientation

Straight

Voltage

2350V

Mating Type

Push Pull

Shell Size

Minimum Operating Temperature

-55°C

Termination Type

Solder

Maximum Operating Temperature

250°C

Housing Material

Brass

Pole Format

Standards/Approvals

Contact Plating

Gold

Contact Material

Brass

Country of Origin

Switzerland

Product Details

B series straight sockets

Enclosures with positioning guide and
foolproof system.
Fitted with female contacts for soldering.

2B Series - Metal

Free plugs (15.0mm dia.) which mate with panel mount sockets all incorporating PEEK insulating material. Terminations are by solder bucket.,The free plugs are supplied with collets to take a maximum cable diameter of 9mm. Smaller collets are available separately. For construction of connector see 0B free plugs.
