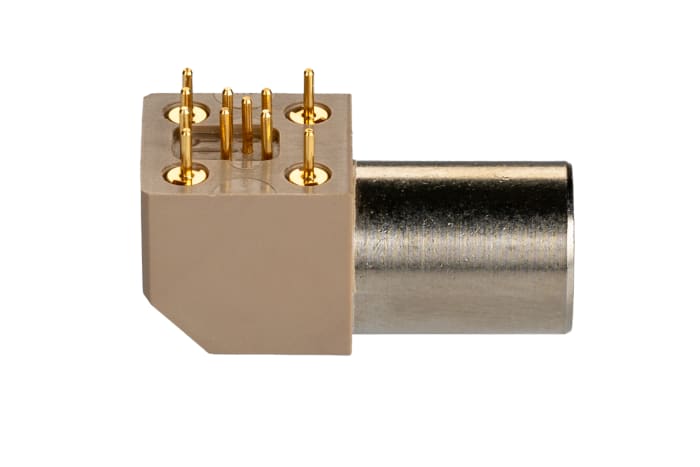

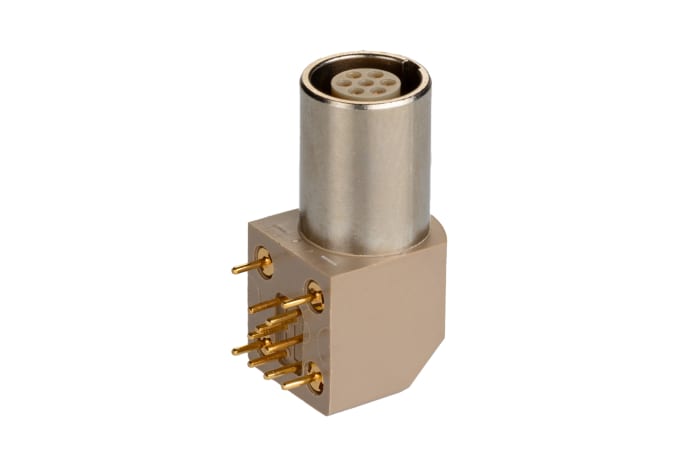

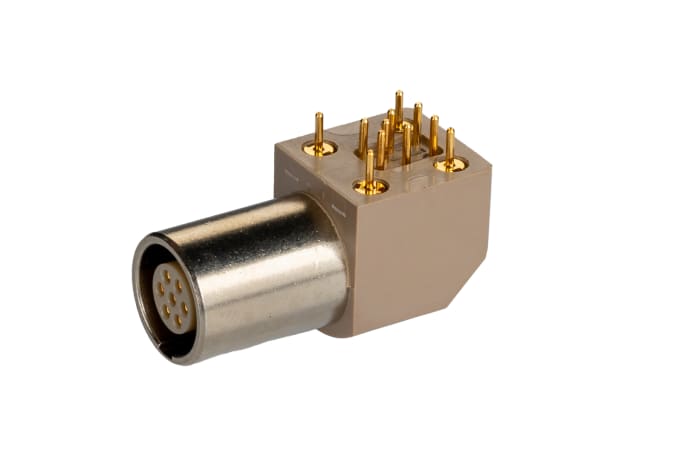

LEMO Circular Connector, 7 Contacts, Panel Mount, 12.6 mm Connector, Socket, Female, IP50, 1B Series

RS Stock No.: 204-8947Brand: LEMOManufacturers Part No.: EPG.1B.307.HLN
brand-logo
View all in Industrial Circular Connectors

Technical Document

Specifications

Brand

Lemo

Number of Contacts

7

Product Type

Circular Connector

Mount Type

Panel Mount

Current

2A

Connector Size

12.6 mm

Plug/Socket

Socket

Contact Gender

Female

IP Rating

IP50

Series

1B

Orientation

Right Angle

Voltage

1450 V

Termination Type

Solder

Mating Type

Push Pull

Shell Size

1

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

250°C

Housing Material

Brass

Standards/Approvals

No

Pole Format

7

Contact Plating

Gold over Nickel

Contact Material

Beryllium Alloy

Country of Origin

Switzerland

Product details

PCB Socket

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

design-spark
design-spark
  • Download and use our DesignSpark software for your PCB and 3D Mechanical designs
  • View and contribute website content and forums
  • Download 3D Models, Schematics and Footprints from more than a million products
Click here to find out more

Stock information temporarily unavailable.

540.50 MOP

540.50 MOP Each (ex VAT)

LEMO Circular Connector, 7 Contacts, Panel Mount, 12.6 mm Connector, Socket, Female, IP50, 1B Series

1

Available in multiples of 1
1540.50 MOP
21,081.00 MOP
31,621.50 MOP
42,162.00 MOP
52,594.30 MOP
63,113.10 MOP
73,632.00 MOP
84,150.90 MOP
94,669.70 MOP
105,188.60 MOP
115,707.40 MOP
126,226.30 MOP
136,745.10 MOP
147,264.00 MOP
157,782.90 MOP

540.50 MOP

540.50 MOP Each (ex VAT)

LEMO Circular Connector, 7 Contacts, Panel Mount, 12.6 mm Connector, Socket, Female, IP50, 1B Series

Stock information temporarily unavailable.

1

Available in multiples of 1
1540.50 MOP
21,081.00 MOP
31,621.50 MOP
42,162.00 MOP
52,594.30 MOP
63,113.10 MOP
73,632.00 MOP
84,150.90 MOP
94,669.70 MOP
105,188.60 MOP
115,707.40 MOP
126,226.30 MOP
136,745.10 MOP
147,264.00 MOP
157,782.90 MOP

quantityUnit price
1 - 4540.50 MOP
5 - 24518.86 MOP
25 - 49497.32 MOP
50+486.29 MOP
