Technical Documents
Specifications
Brand
Lite-OnProduct Type
Optocoupler
Mount Type
Surface
Maximum Forward Voltage
1.65V
Number of Channels
1
Number of Pins
6
Package Type
PDIP
Input Current Type
DC
Typical Rise Time
5μs
Maximum Input Current
60mA
Isolation Voltage
5000Vrms
Minimum Operating Temperature
-55°C
Maximum Current Transfer Ratio
125%
Maximum Operating Temperature
100°C
Minimum Current Transfer Ratio
63%
Typical Fall Time
5μs
Standards/Approvals
UL, CSA
Series
CNY17
Automotive Standard
No
Country of Origin
Thailand
Product Details

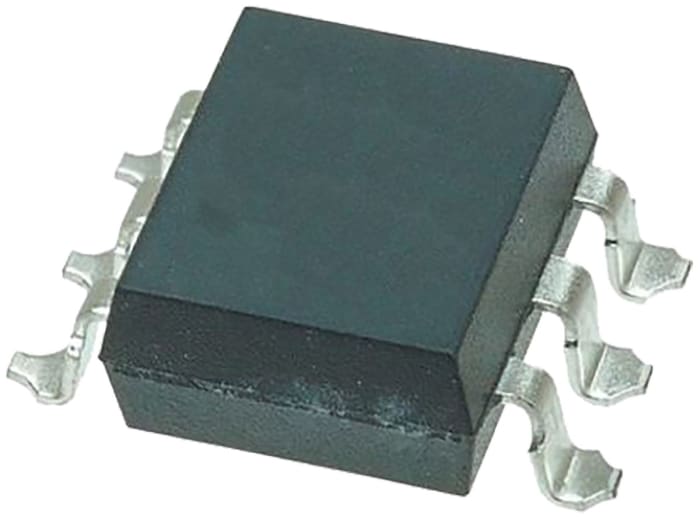

A range of single channel optocouplers from Lite-On with photo-transistor outputs. These 6-pin devices allow access to the photo-transistor base and are available with a range of minimum current transfer ratios from 20% up to 160%. The range includes both through-hole and surface-mounting package options.
Stock information temporarily unavailable.
173.00 MOP
2.662 MOP Each (In a Tube of 65) (ex VAT)
65
173.00 MOP
2.662 MOP Each (In a Tube of 65) (ex VAT)
Stock information temporarily unavailable.
65
| quantity | Unit price | Per Tube |
|---|---|---|
| 65 - 260 | 2.662 MOP | 173.02 MOP |
| 325+ | 2.396 MOP | 155.71 MOP |
