Technical Documents
Specifications
Brand
LittelfuseRated Average On-State Current Irms
4A
Product Type

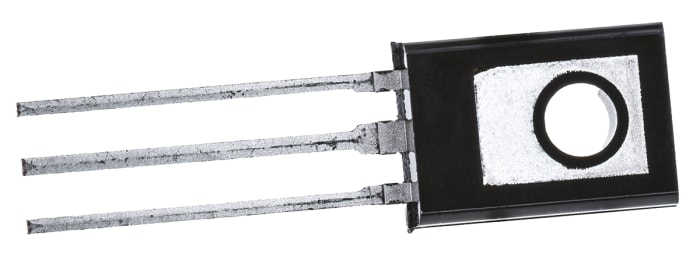

Sensitive Gate Silicon Controlled Rectifier
Thyristor Type
SCR
Package Type
TO-225
Repetitive Peak Reverse Voltage VDRM
600V
Surge Current Rating
20A
Mount Type
Chassis, Lead
Maximum Gate Trigger Current Igt
200μA
Pin Count
3
Maximum Holding Current Ih
6mA
Minimum Operating Temperature
-40°C
Maximum Gate Trigger Voltage Vgt
1V
Maximum Operating Temperature
110°C
Standards/Approvals
No
Series
C106
Repetitive Peak Off-State Current
0.01mA
Peak On-State Voltage
2.2V
Automotive Standard
No
Product Details

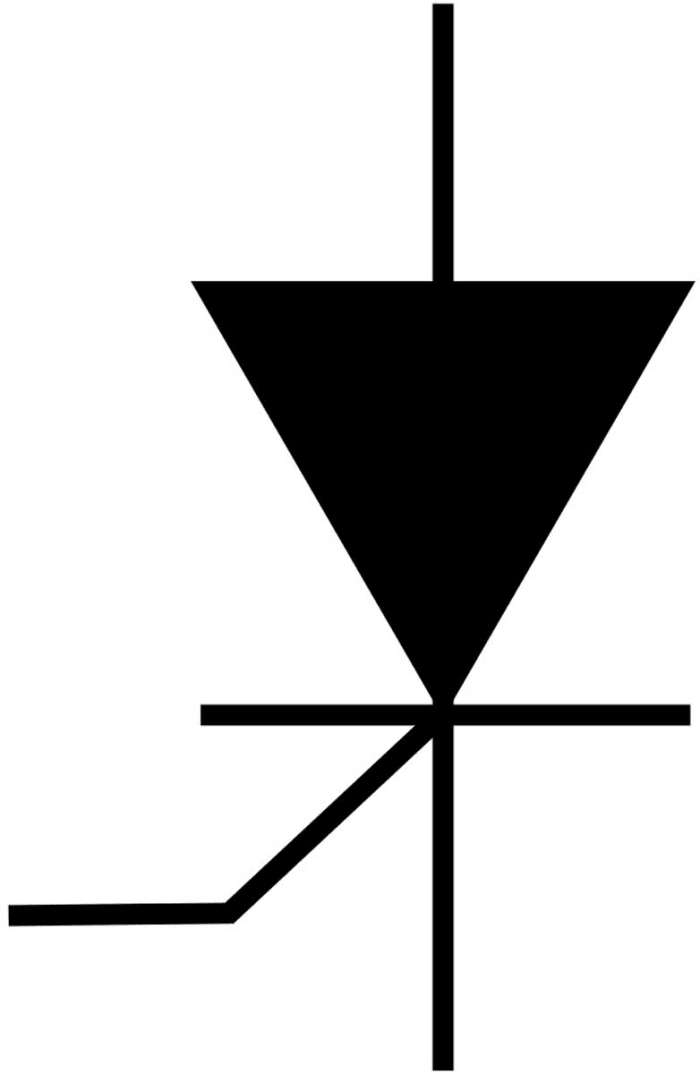

A Thyristor is a solid-state semiconductor device with four layers of alternating N and P-type material. They act as bistable switches, conducting when their gate receives a current trigger, and continue to conduct while they are forward biased. Thyristors are synonymous to Silicon-Controlled Rectifier (SCR).
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
11.00 MOP
11.03 MOP Each (Supplied as a Tape) (ex VAT)
Production pack (Tape)
1
11.00 MOP
11.03 MOP Each (Supplied as a Tape) (ex VAT)
Stock information temporarily unavailable.
Production pack (Tape)
1
| quantity | Unit price |
|---|---|
| 1 - 124 | 11.03 MOP |
| 125 - 249 | 10.92 MOP |
| 250+ | 10.72 MOP |
