Specifications
Brand
LittelfuseRated Average On-State Current Irms
12A
Product Type
Silicon Controlled Rectifier
Thyristor Type
SCR
Package Type

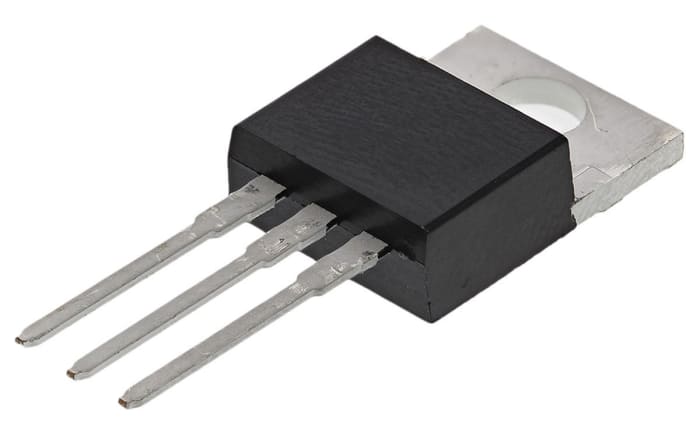

TO-220AB
Repetitive Peak Reverse Voltage VDRM
50V
Surge Current Rating
100A
Mount Type
Through Hole
Maximum Gate Trigger Current Igt
30mA
Pin Count
3
Maximum Holding Current Ih
50mA
Minimum Operating Temperature
-40°C
Maximum Gate Trigger Voltage Vgt
1.5V
Maximum Operating Temperature
125°C
Standards/Approvals
No
Series
MCR68-2
Repetitive Peak Off-State Current
2mA
Peak On-State Voltage
2.2V
Automotive Standard
No
Product Details
A Thyristor is a solid-state semiconductor device with four layers of alternating N and P-type material. They act as bistable switches, conducting when their gate receives a current trigger, and continue to conduct while they are forward biased. Thyristors are synonymous to Silicon-Controlled Rectifier (SCR).
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
106.00 MOP
10.604 MOP Each (In a Pack of 10) (ex VAT)
10
106.00 MOP
10.604 MOP Each (In a Pack of 10) (ex VAT)
Stock information temporarily unavailable.
10
| quantity | Unit price | Per Pack |
|---|---|---|
| 10 - 120 | 10.604 MOP | 106.04 MOP |
| 130 - 240 | 10.336 MOP | 103.36 MOP |
| 250+ | 10.181 MOP | 101.81 MOP |
