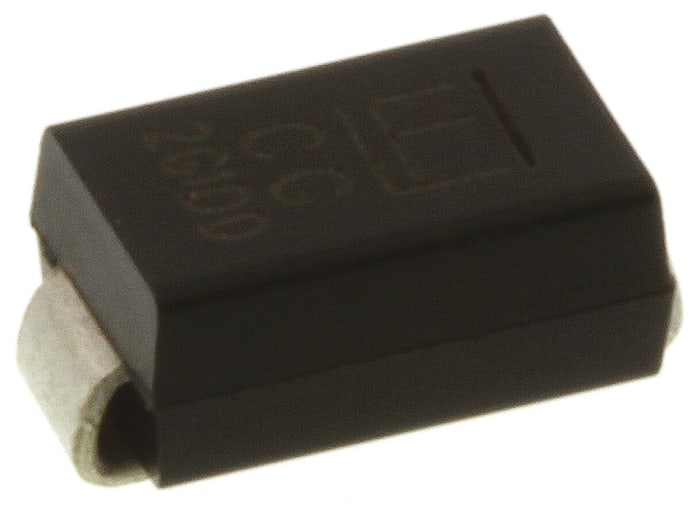

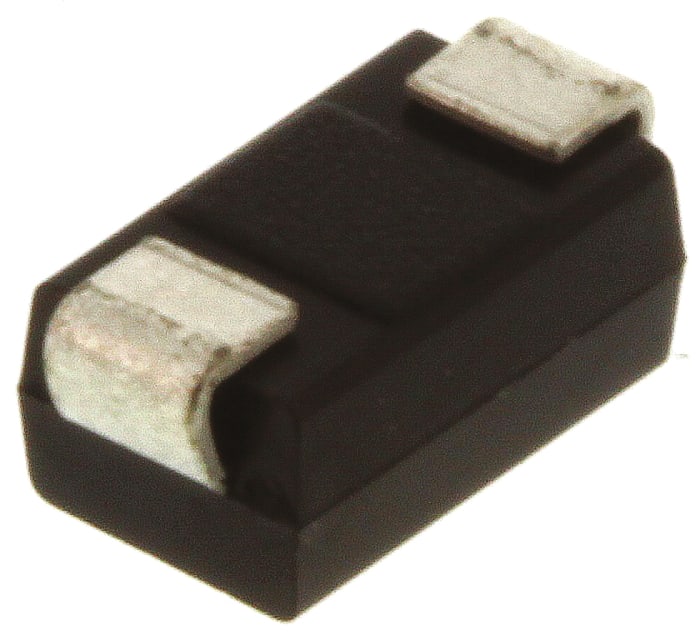

Littelfuse 1-Element Uni-Directional TVS Diode, 400 W, 2-Pin DO-214

RS Stock No.: 764-5546PBrand: LittelfuseManufacturers Part No.: SMAJ28A
brand-logo
View all in TVS Diodes

Technical Document

Specifications

Brand

Littelfuse

Direction Type

Uni-Directional

Diode Configuration

Single

Product Type

TVS Diode

Minimum Breakdown Voltage Vbr

31.1V

Mount Type

Surface

Package Type

DO-214

Maximum Reverse Stand-off Voltage Vwm

28V

Pin Count

2

Peak Pulse Power Dissipation Pppm

400W

Clamping Voltage VC

45.4V

Minimum Operating Temperature

-65°C

Test Current It

1mA

Maximum Peak Pulse Current Ippm

8.8A

ESD Protection

Yes

Number of Elements per Chip

1

Maximum Operating Temperature

150°C

Width

2.79 mm

Height

2.087mm

Length

4.5mm

Standards/Approvals

No

Series

SMAJ

Automotive Standard

No

Maximum Reverse Leakage Current

1μA

Product details

TVS Diodes SMT Unidirectional 400W, SMAJ Series, Littelfuse
