Technical Documents
Specifications
Brand
LittelfuseDiode Configuration
Single
Product Type

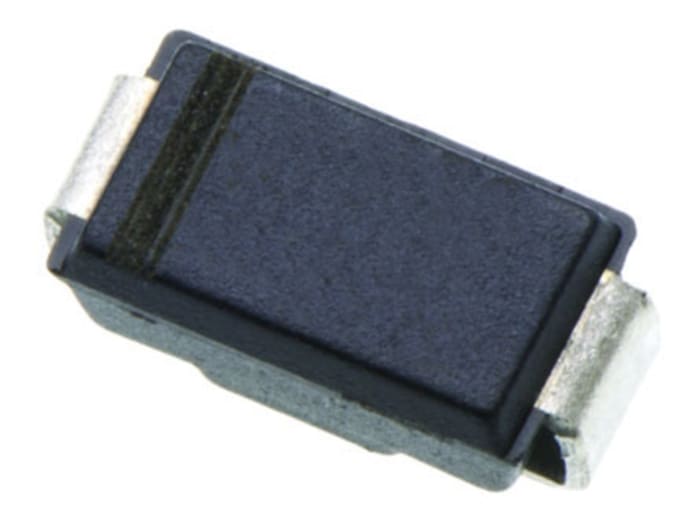

TVS Diode
Direction Type
Uni-Directional
Minimum Breakdown Voltage Vbr
6.4V
Mount Type
Surface
Package Type
DO-214
Maximum Reverse Stand-off Voltage Vwm
5V
Pin Count
2
Peak Pulse Power Dissipation Pppm
400W
Clamping Voltage VC
9.2V
Minimum Operating Temperature
-65°C
Test Current It
10mA
Maximum Peak Pulse Current Ippm
43.5A
ESD Protection
Yes
Number of Elements per Chip
1
Maximum Operating Temperature
150°C
Height
2.087mm
Length
4.5mm
Standards/Approvals
No
Width
2.79mm
Series
SMAJ
Maximum Reverse Leakage Current
800μA
Automotive Standard
No
Product Details
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
49.30 MOP
1.97 MOP Each (Supplied on a Reel) (ex VAT)
Production pack (Reel)
25
49.30 MOP
1.97 MOP Each (Supplied on a Reel) (ex VAT)
Stock information temporarily unavailable.
Production pack (Reel)
25
| quantity | Unit price | Per Reel |
|---|---|---|
| 25 - 25 | 1.97 MOP | 49.26 MOP |
| 50 - 75 | 1.925 MOP | 48.12 MOP |
| 100 - 175 | 1.876 MOP | 46.89 MOP |
| 200 - 375 | 1.834 MOP | 45.86 MOP |
| 400+ | 1.777 MOP | 44.42 MOP |
