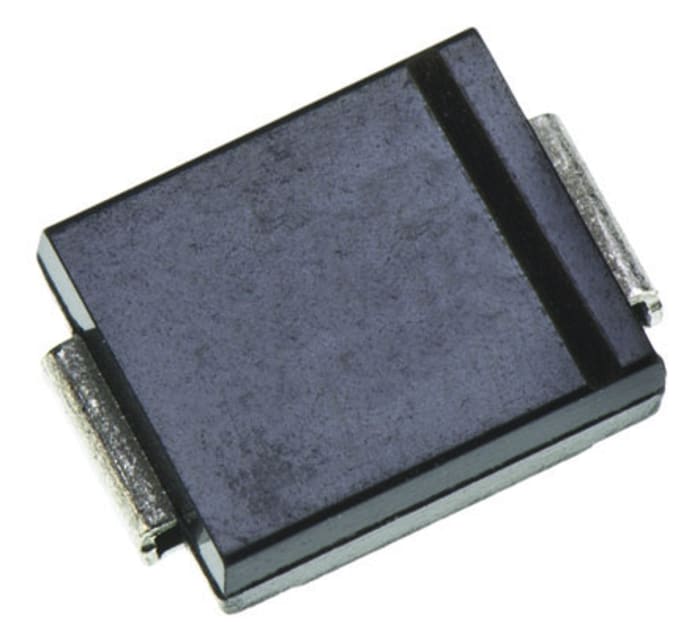

Littelfuse 1-Element Uni-Directional TVS Diode, 3 kW, 2-Pin DO-214

The SMDJ Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

• For surface mounted applications in order to optimize board space
• Low profile package
• Typical failure mode is short from over-specified voltage or current
• Built-in strain relief
• Typical maximum temperature coefficient ΔVBR = 0.1% x VBR@25°C x ΔT
• Glass passivated chip junction
• 3000W peak pulse power capability at 10x1000μs waveform, repetition rate (duty cycles):0.01%
• Fast response time: typically less than 1.0ps from 0V to BV min
• Excellent clamping capability
• Low incremental surge resistance
• Typical IR less than 2μA above 12V
• High temperature soldering guaranteed: 260°C/40 seconds at terminals
• Plastic package has underwriters laboratory flammability 94V-O
• Matte tin lead–free plated
• Halogen free
