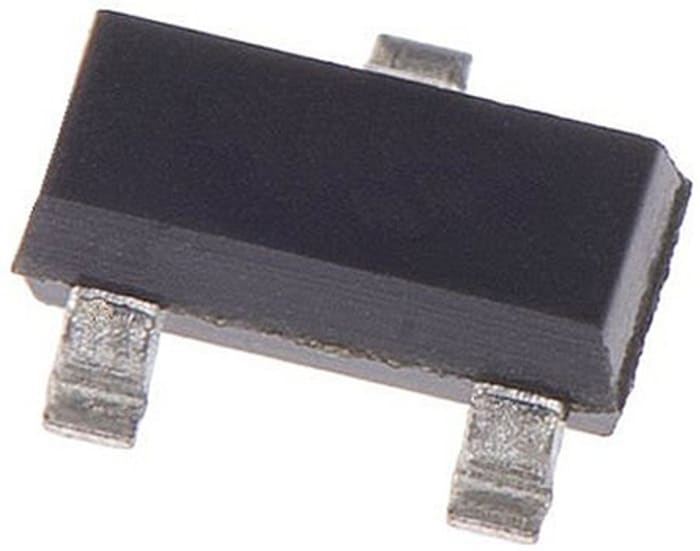

Littelfuse 2-Element Uni-Directional TVS Diode Array, 0.22 W, 3-Pin SOT-23
Technical Document
Specifications
Brand
LittelfuseDiode Configuration
Array
Product Type
TVS Diode Array
Direction Type
Uni-Directional
Minimum Breakdown Voltage Vbr
6V
Mount Type
Surface
Package Type
SOT-23
Maximum Reverse Stand-off Voltage Vwm
5.5V
Pin Count
3
Peak Pulse Power Dissipation Pppm
0.22W
Clamping Voltage VC
8.5V
Minimum Operating Temperature
-40°C
Test Current It
10mA
ESD Protection
Yes
Number of Elements per Chip
2
Maximum Operating Temperature
85°C
Width
2.64 mm
Height
1.02mm
Length
3.04mm
Standards/Approvals
No
Series
SP05
Maximum Reverse Leakage Current
100nA
Automotive Standard
No
Product details
TVS Diode Arrays, SP05 Series
General Purpose ESD Protection - SP05 Series
Transient Voltage Suppressors, Littelfuse
