Technical Documents
Specifications
Brand
MicrochipProduct Type
Operational Amplifier
Mount Type
Surface
Package Type
SOT-23
Number of Channels
1
Pin Count
5
GBP - Gain Bandwidth Product
300kHz
Minimum Supply Voltage
6V
Maximum Supply Voltage
6V
Input Bias Current
1 pA
Minimum Operating Temperature
-40°C
Vos - Input Offset Voltage
5 mV
Slew Rate
0.15V/μs
Maximum Operating Temperature
125°C
Height
1.3mm
Length
3.1mm
Standards/Approvals
RoHS
Width
1.8mm
Series
MCP6231
Output Current
30mA
Automotive Standard
No
Input Offset Current
1 pA
Product Details

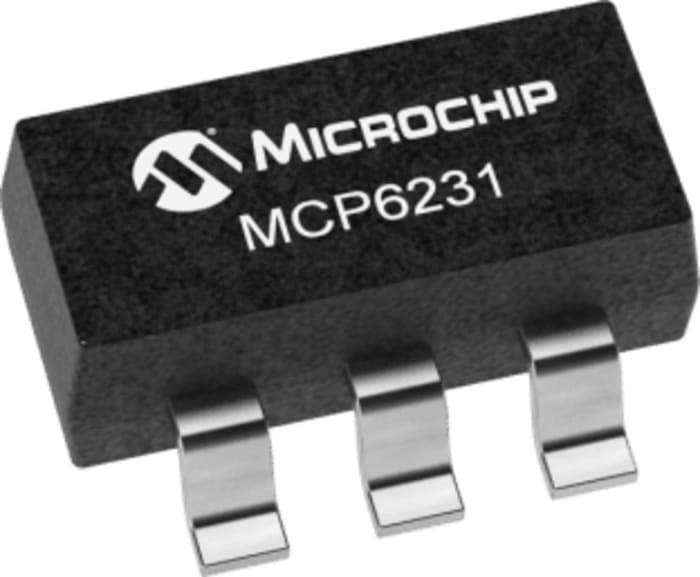

The Microchip Technology Inc. MCP6231/1R/1U/2/4 Operational Amplifier family has a 300 kHz gain bandwidth product and 65° (typical) phase margin. This family OPerates from a single supply voltage as low as 1.8V, while drawing 20 μA (typical) quiescent current. In addition, the MCP6231/1R/1U/2/4 family supports rail-to-rail input and output swing, with a common mode input voltage range of VDD + 300mV to VSS – 300mV. These OP amps are designed in one of Microchips Advanced CMOS processes.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
8,084.30 MOP
2.695 MOP Each (On a Reel of 3000) (ex VAT)
3000
8,084.30 MOP
2.695 MOP Each (On a Reel of 3000) (ex VAT)
Stock information temporarily unavailable.
3000
| quantity | Unit price | Per Reel |
|---|---|---|
| 3000 - 12000 | 2.695 MOP | 8,084.27 MOP |
| 15000+ | 2.641 MOP | 7,922.48 MOP |
