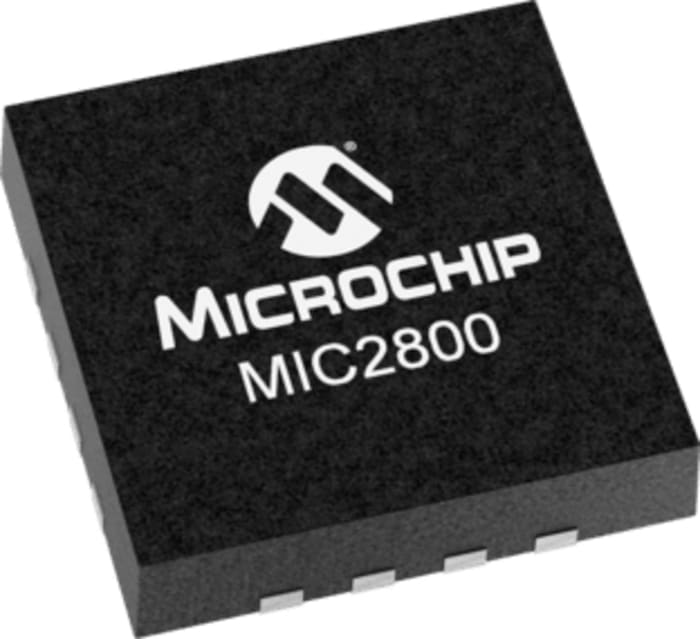

Microchip 16-Pin 2.7 V 5.5V

Name: Microchip 16-Pin 2.7 V 5.5V
Brand: Microchip
SKU: 1879376
Availability: LimitedAvailability

RS Stock No.: 187-9376Brand: MicrochipManufacturers Part No.: MIC2800-G2SYML-TR

View all in Voltage Controllers

Technical Documents

Specifications

Brand

Microchip

Product Type

Voltage Controller

Number of Channels

Mount Type

Surface

Pin Count

Minimum Supply Voltage

2.7V

Maximum Supply Voltage

5.5V

Length

3mm

Height

0.85mm

Standards/Approvals

RoHS

Series

MIC2800

Maximum Operating Temperature

125°C

Automotive Standard

Product Details

2.7V to 5.5V input voltage range
2MHz DC/DC converter and two stand-alone LDOs
LDO1: Low input voltage is powered directly from DC/DC converter for highest efficiency
Integrated power-on reset (OR function for all outputs)
Adjustable delay time
LowQ® mode
30μA Total IQ when in LowQ® mode
DC to DC Converter
Output current to 600mA in PWM mode
LowQ® Mode: no noise light load mode
75μVRMS output noise in LowQ® mode
2 MHz PWM operation in normal mode
>90% efficiency
LDOs
LDO1 input voltage directly connected to DC/DC converter output voltage for maximum efficiency
Ideal for 1.8V to 1.5V conversion
300mA output current from 1.8V input
Output voltage down to 0.8V
LDO2: 300mA output current capable
Thermal Shutdown Protection
Current Limit Protection
Applications
Embedded MPU and MCU Power
Portable and Wearable Applications
Low-Power RF Systems
Backup Power Systems
