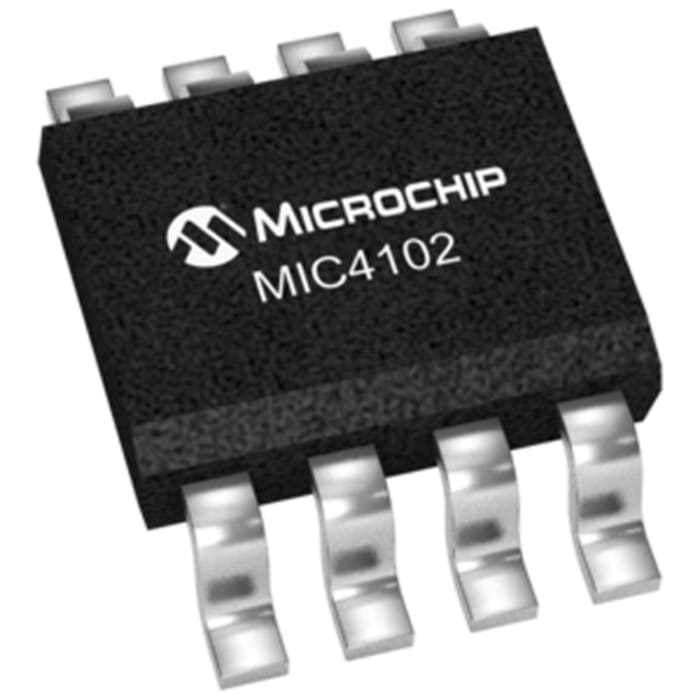

Microchip MIC4102YM MOSFET Gate Driver 2, 3 A 8-Pin 16 V, SOIC

RS Stock No.: 910-1884Brand: MicrochipManufacturers Part No.: MIC4102YM
brand-logo
View all in Gate Drivers

Technical Document

Specifications

Brand

Microchip

Product Type

MOSFET

Output Current

3A

Pin Count

8

Fall Time

6ns

Package Type

SOIC

Number of Outputs

2

Driver Type

MOSFET

Rise Time

10ns

Minimum Supply Voltage

9V

Number of Drivers

2

Maximum Supply Voltage

16V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

125°C

Width

3.94 mm

Length

4.93mm

Series

MIC4102

Height

1.48mm

Standards/Approvals

No

Mount Type

Surface

Automotive Standard

No

Product details

MOSFET & IGBT Drivers, Micrel Inc
