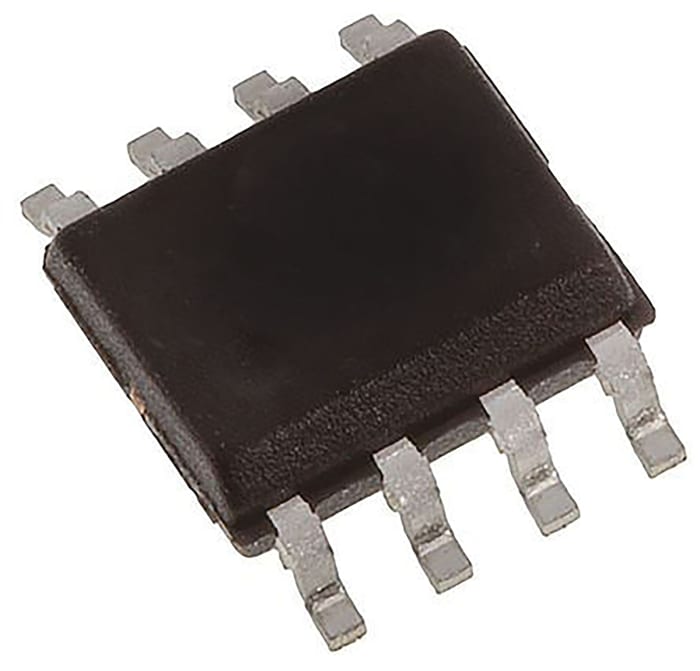

Microchip, 8 bit PIC, PIC12F617 Microcontroller, 20 MHz, 3.5kB FLASH, 8-Pin SOIC

Name: Microchip, 8 bit PIC, PIC12F617 Microcontroller, 20 MHz, 3.5kB FLASH, 8-Pin SOIC
Brand: Microchip
SKU: 7037844P
Availability: LimitedAvailability

RS Stock No.: 703-7844PBrand: MicrochipManufacturers Part No.: PIC12F617-I/SN

View all in Microcontrollers

Technical Documents

Specifications

Brand

Microchip

Product Type

Microcontroller

Series

PIC12F617

Package Type

SOIC

Mount Type

Surface

Pin Count

Device Core

PIC

Data Bus Width

8bit

Program Memory Size

3.5kB

Maximum Clock Frequency

20MHz

RAM Size

128bit

Maximum Supply Voltage

5.5V

Number of Programmable I/Os

Minimum Operating Temperature

-40°C

Analogue Comparators

Maximum Expanded Memory Size

8bit

Maximum Power Dissipation Pd

800mW

Maximum Operating Temperature

85°C

Height

1.5mm

Length

4.9mm

Standards/Approvals

RoHS

Minimum Supply Voltage

Instruction Set Architecture

RISC

Automotive Standard

ADCs

4 x 10 Bit

Program Memory Type

FLASH

Product Details

PIC12F609/615/617 8-Bit Flash Microcontrollers

Microchip’s PIC12 Microcontrollers (MCUs) were the world’s first 8-Pin microcontrollers. Originally launched as One Time Programmable (OTP) parts, this range of devices continues to expand as extra features and further improvements are added.

The PIC12F609/615/617 family of microcontrollers is based upon Microchip’s mid-range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, up to 3.5 Kbytes program memory with data memory up to 128 bytes RAM. On board is a configurable RC oscillator with ±1% accuracy.

Features

35 Instructions
8 Level Hardware Stack
8 MHz Internal Oscillator – Selectable 4 MHz or 8 MHz
5 I/O Pins
1 Comparator
4 Channel 10-bit Analogue to Digital Converter (ADC) – PIC12F615/F617 only
One 8-bit Timer – PIC12F615/F617 Two 8-Bit Timers
One 16-bit Timer
In Circuit Serial Programming (ICSP)

Microchip PIC12F 8-bit PIC® Microcontrollers

Microchip’s PIC12F Microcontrollers (MCUs) were the world’s first 8-Pin microcontrollers. Originally launched as One Time Programmable (OTP) parts, this range of devices continues to expand as Microchip adds extra features, further improves specifications and continues to offer ever greater value. Key to the success of the PIC12F was the internal RC oscillator that allowed six I/O channels in an 8-pin package. Later versions of this RC oscillator are configurable between 31kHz and 32MHz.
