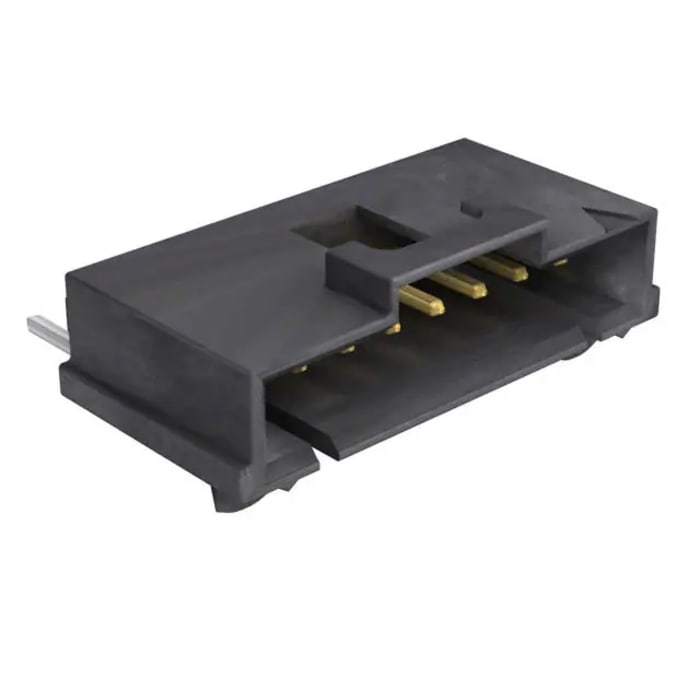

Molex SL Series Right Angle Surface PCB Header, 8 Contact(s), 2.54 mm Pitch, 1 Row(s), Shrouded

RS Stock No.: 213-4503Brand: MolexManufacturers Part No.: 15912085
brand-logo
View all in PCB Headers

Technical Document

Specifications

Brand

Molex

Product Type

PCB Header

Series

SL

Current

3A

Pitch

2.54mm

Number of Contacts

8

Housing Material

High Temperature Thermoplastic

Number of Rows

1

Orientation

Right Angle

Shrouded/Unshrouded

Shrouded

Connector System

Wire-to-Board

Mount Type

Surface

Contact Material

Brass, Phosphor Bronze

Contact Plating

Gold

Row Pitch

2.54mm

Termination Type

Tin

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

105°C

Contact Gender

Male

Standards/Approvals

CSA LR19980, UL E29179

Voltage

250 V

Distrelec Product Id

304-57-023

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

design-spark
design-spark
  • Download and use our DesignSpark software for your PCB and 3D Mechanical designs
  • View and contribute website content and forums
  • Download 3D Models, Schematics and Footprints from more than a million products
Click here to find out more

Stock information temporarily unavailable.

747.60 MOP

33.983 MOP Each (In a Tube of 22) (ex VAT)

Molex SL Series Right Angle Surface PCB Header, 8 Contact(s), 2.54 mm Pitch, 1 Row(s), Shrouded

22

Available in multiples of 22
22747.60 MOP
441,458.00 MOP
662,186.90 MOP
882,871.00 MOP
1103,588.70 MOP
1324,306.50 MOP
1545,024.20 MOP
1765,741.90 MOP
1986,459.70 MOP
2207,177.40 MOP
2427,895.20 MOP
2648,612.90 MOP
2869,330.70 MOP
30810,048.40 MOP
33010,766.10 MOP

747.60 MOP

33.983 MOP Each (In a Tube of 22) (ex VAT)

Molex SL Series Right Angle Surface PCB Header, 8 Contact(s), 2.54 mm Pitch, 1 Row(s), Shrouded

Stock information temporarily unavailable.

22

Available in multiples of 22
22747.60 MOP
441,458.00 MOP
662,186.90 MOP
882,871.00 MOP
1103,588.70 MOP
1324,306.50 MOP
1545,024.20 MOP
1765,741.90 MOP
1986,459.70 MOP
2207,177.40 MOP
2427,895.20 MOP
2648,612.90 MOP
2869,330.70 MOP
30810,048.40 MOP
33010,766.10 MOP

quantityUnit pricePer Tube
22 - 2233.983 MOP747.63 MOP
44 - 6633.135 MOP728.98 MOP
88+32.625 MOP717.74 MOP
