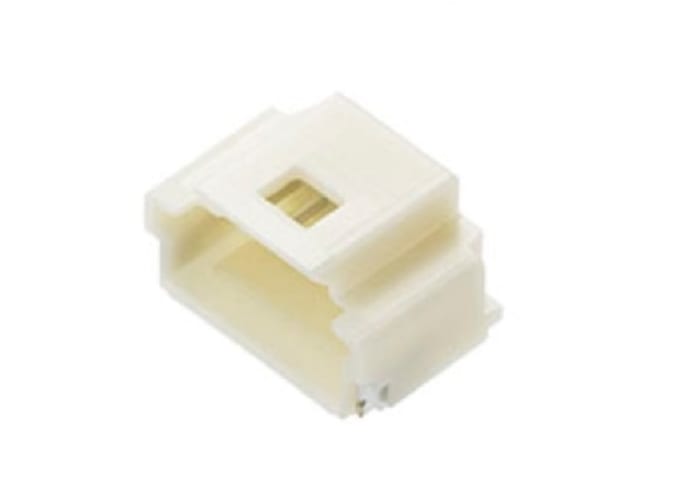

Molex Pico-Clasp Series Right Angle Surface PCB Header, 7 Contact(s), 1 mm Pitch, 1 Row, Shrouded

RS Stock No.: 243-6870PBrand: MolexManufacturers Part No.: 501568-0707
brand-logo
View all in PCB Headers

Technical Document

Specifications

Brand

Molex

Series

Pico-Clasp

Product Type

PCB Header

Pitch

1mm

Current

1A

Number of Contacts

7

Housing Material

Nylon

Number of Rows

1

Orientation

Right Angle

Shrouded/Unshrouded

Shrouded

Connector System

Wire-to-Board

Mount Type

Surface

Contact Material

Phosphor Bronze

Contact Plating

Tin

Minimum Operating Temperature

-40°C

Row Pitch

1mm

Termination Type

Tin

Contact Gender

Male

Maximum Operating Temperature

105°C

Mating Pin Length

2mm

Standards/Approvals

UL E29179

Voltage

100 Vrms

Country of Origin

Japan
