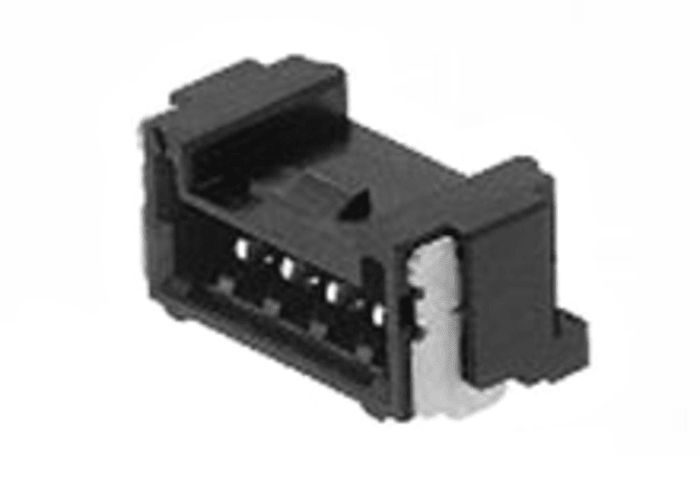

Molex Micro-Lock Plus Series Right Angle Surface PCB Header, 2 Contact(s), 1.25 mm Pitch, 1 Row(s), Shrouded

RS Stock No.: 161-5931Brand: MolexManufacturers Part No.: 505567-0271
brand-logo
View all in PCB Headers

Technical Document

Specifications

Brand

Molex

Series

Micro-Lock Plus

Product Type

PCB Header

Pitch

1.25mm

Current

1.5A

Number of Contacts

2

Housing Material

Polyamide

Number of Rows

1

Orientation

Right Angle

Shrouded/Unshrouded

Shrouded

Mount Type

Surface

Connector System

Wire-to-Board

Contact Material

Brass

Contact Plating

Tin

Minimum Operating Temperature

-40°C

Termination Type

Solder

Contact Gender

Male

Maximum Operating Temperature

105°C

Standards/Approvals

No

Voltage

50 V

Country of Origin

Malaysia
