Technical Documents
Specifications
Brand
MolexProduct Type
PCB Header
Series
SlimStack
Pitch
0.64mm
Current
500mA
Number of Contacts
160
Housing Material
Liquid Crystal Polymer
Number of Rows
2
Orientation
Straight
Shrouded/Unshrouded
Shrouded
Connector System
Board-to-Board
Mount Type
Surface
Contact Material
Copper Alloy
Contact Plating
Gold
Row Pitch
2.27mm
Minimum Operating Temperature
-40°C
Termination Type
Solder
Maximum Operating Temperature
105°C
Standards/Approvals
RoHS
Mating Pin Length
6mm
Voltage
100V
Country of Origin
Japan
Product Details

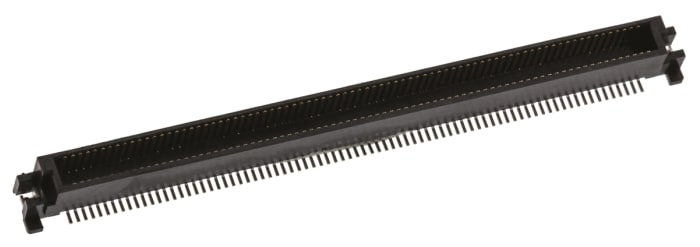

0.635mm Slimstack SMT dual row vertical stacking board to board headers which will have a stack height of 6 mm when mated with 52885 Series Receptacles, see stock number 720-6384 typically.
The Molex SlimStack 0.635 mm pitch range of Micro SMT stacking connectors provide space-saving solutions for various applications. Gold plated contacts with a long swipe length give high reliability and friction locking for mating retention are all features of the Molex SlimStack range.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
503.90 MOP
100.783 MOP Each (In a Pack of 5) (ex VAT)
Standard
5
503.90 MOP
100.783 MOP Each (In a Pack of 5) (ex VAT)
Stock information temporarily unavailable.
Standard
5
| quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 245 | 100.783 MOP | 503.91 MOP |
| 250 - 495 | 98.578 MOP | 492.89 MOP |
| 500+ | 96.455 MOP | 482.27 MOP |
