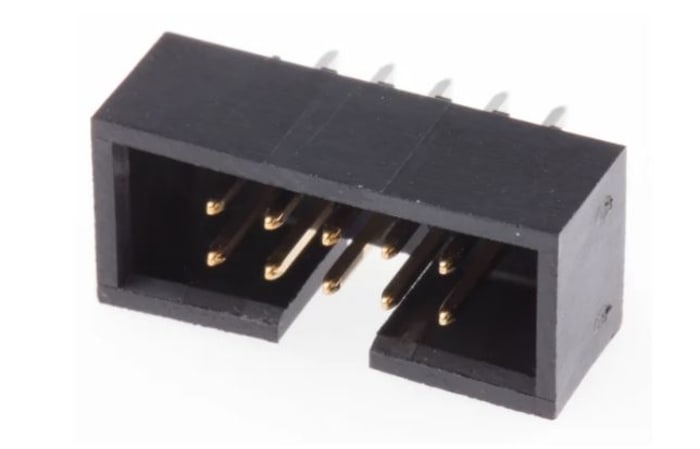

Molex C-Grid Series Vertical Through Hole PCB Header, 10 Contact(s), 2.54 mm Pitch, 2 Row, Shrouded

RS Stock No.: 213-4674Brand: MolexManufacturers Part No.: 702461003Distrelec Article No.: 304-57-535
brand-logo
View all in PCB Headers

Technical Document

Specifications

Brand

Molex

Series

C-Grid

Product Type

PCB Header

Pitch

2.54mm

Current

2.5A

Number of Contacts

10

Housing Material

Polybutylene Terephthalate

Number of Rows

2

Orientation

Vertical

Shrouded/Unshrouded

Shrouded

Connector System

Wire-to-Board

Mount Type

Through Hole

Contact Material

Brass

Contact Plating

Gold

Minimum Operating Temperature

-55°C

Row Pitch

254mm

Termination Type

Solder

Contact Gender

Male

Tail Pin Length

3.43mm

Maximum Operating Temperature

120°C

Mating Pin Length

6.1mm

Standards/Approvals

CSA LR19980, UL E29179

Voltage

250 V

Country of Origin

Malaysia
