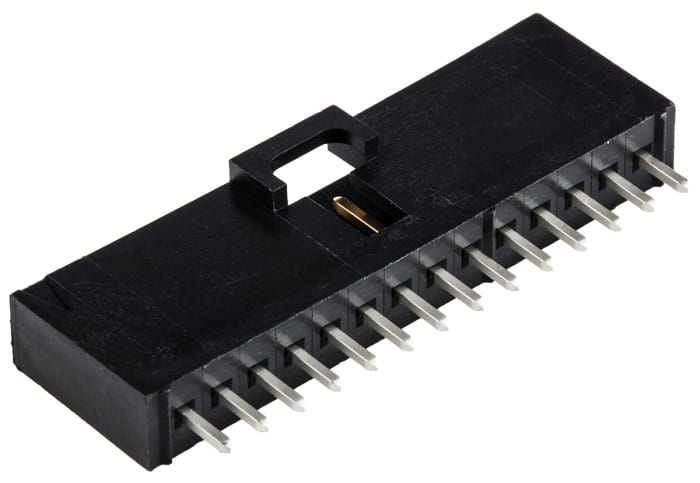

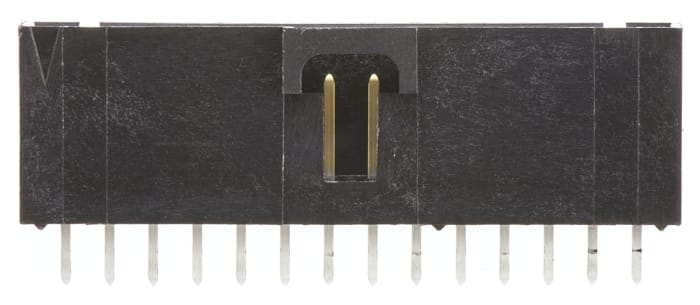

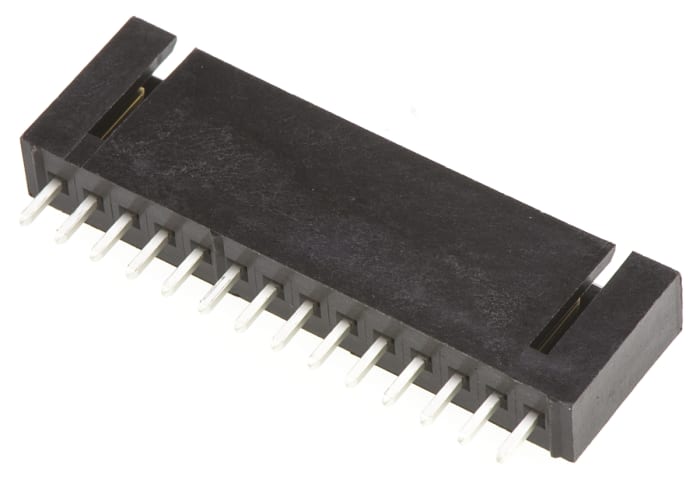

Molex SL Series Straight Through Hole PCB Header, 14 Contact(s), 2.54 mm Pitch, 1 Row, Shrouded

RS Stock No.: 679-2500PBrand: MolexManufacturers Part No.: 70543-0013
brand-logo
View all in PCB Headers

Technical Document

Specifications

Brand

Molex

Series

SL

Product Type

PCB Header

Pitch

2.54mm

Current

3A

Number of Contacts

14

Housing Material

Glass Filled Polyester

Number of Rows

1

Orientation

Straight

Shrouded/Unshrouded

Shrouded

Connector System

Wire-to-Board

Mount Type

Through Hole

Contact Material

Phosphor Bronze

Contact Plating

Gold

Minimum Operating Temperature

-40°C

Row Pitch

2.54mm

Termination Type

Solder

Contact Gender

Male

Tail Pin Length

3.3mm

Maximum Operating Temperature

105°C

Mating Pin Length

6.1mm

Standards/Approvals

No

Voltage

250 V

Product details

Vertical Shrouded Headers, 70553 Series

Mates with 70600G and 70600N Series connectors typical stock numbers 679-5928 and 670-3963 respectively
Mating Gold plating thickness 0.38 μm unless otherwise stated
Mating Tin plating thickness 3.75 μm

2.54mm Molex C-Grid/SL Series
