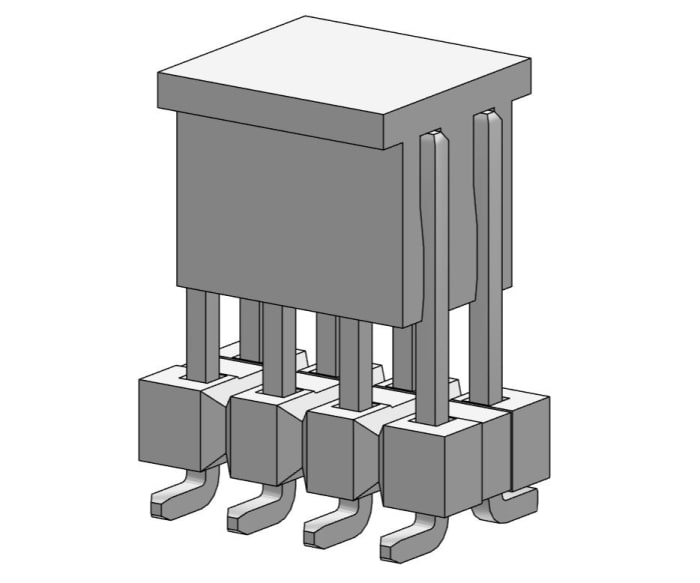

Molex C-Grid Series Vertical Surface Pin Header, 8 Contact(s), 2.54 mm Pitch, 2 Row, Unshrouded

RS Stock No.: 213-4835Brand: MolexManufacturers Part No.: 879200830
brand-logo
View all in PCB Headers

Technical Document

Specifications

Brand

Molex

Series

C-Grid

Product Type

Pin Header

Pitch

2.54mm

Current

3A

Number of Contacts

8

Housing Material

High Temperature Thermoplastic

Number of Rows

2

Orientation

Vertical

Shrouded/Unshrouded

Unshrouded

Connector System

Board-to-Board

Mount Type

Surface

Contact Material

Copper Alloy

Contact Plating

Tin

Minimum Operating Temperature

-55°C

Row Pitch

2.54mm

Termination Type

Nickel Plated Termination

Contact Gender

Male

Maximum Operating Temperature

105°C

Standards/Approvals

UL E29179

Voltage

250 V

Country of Origin

Indonesia

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

design-spark
design-spark
  • Download and use our DesignSpark software for your PCB and 3D Mechanical designs
  • View and contribute website content and forums
  • Download 3D Models, Schematics and Footprints from more than a million products
Click here to find out more
View all in PCB Headers

Stock information temporarily unavailable.

7,724.10 MOP

10.299 MOP Each (On a Reel of 750) (ex VAT)

Molex C-Grid Series Vertical Surface Pin Header, 8 Contact(s), 2.54 mm Pitch, 2 Row, Unshrouded

750

Available in multiples of 750
7507,724.10 MOP
150015,062.00 MOP
225022,593.00 MOP
300029,660.70 MOP
375037,075.80 MOP
450044,491.00 MOP
525051,906.20 MOP
600059,321.40 MOP
675066,736.50 MOP
750074,151.70 MOP
825081,566.90 MOP
900088,982.00 MOP
975096,397.20 MOP
10500103,812.40 MOP
11250111,227.50 MOP

7,724.10 MOP

10.299 MOP Each (On a Reel of 750) (ex VAT)

Molex C-Grid Series Vertical Surface Pin Header, 8 Contact(s), 2.54 mm Pitch, 2 Row, Unshrouded

Stock information temporarily unavailable.

750

Available in multiples of 750
7507,724.10 MOP
150015,062.00 MOP
225022,593.00 MOP
300029,660.70 MOP
375037,075.80 MOP
450044,491.00 MOP
525051,906.20 MOP
600059,321.40 MOP
675066,736.50 MOP
750074,151.70 MOP
825081,566.90 MOP
900088,982.00 MOP
975096,397.20 MOP
10500103,812.40 MOP
11250111,227.50 MOP

quantityUnit pricePer Reel
750 - 75010.299 MOP7,724.11 MOP
1500 - 225010.041 MOP7,531.00 MOP
3000+9.887 MOP7,415.17 MOP

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

design-spark
design-spark
  • Download and use our DesignSpark software for your PCB and 3D Mechanical designs
  • View and contribute website content and forums
  • Download 3D Models, Schematics and Footprints from more than a million products
Click here to find out more

Technical Document

Specifications

Brand

Molex

Series

C-Grid

Product Type

Pin Header

Pitch

2.54mm

Current

3A

Number of Contacts

8

Housing Material

High Temperature Thermoplastic

Number of Rows

2

Orientation

Vertical

Shrouded/Unshrouded

Unshrouded

Connector System

Board-to-Board

Mount Type

Surface

Contact Material

Copper Alloy

Contact Plating

Tin

Minimum Operating Temperature

-55°C

Row Pitch

2.54mm

Termination Type

Nickel Plated Termination

Contact Gender

Male

Maximum Operating Temperature

105°C

Standards/Approvals

UL E29179

Voltage

250 V

Country of Origin

Indonesia
