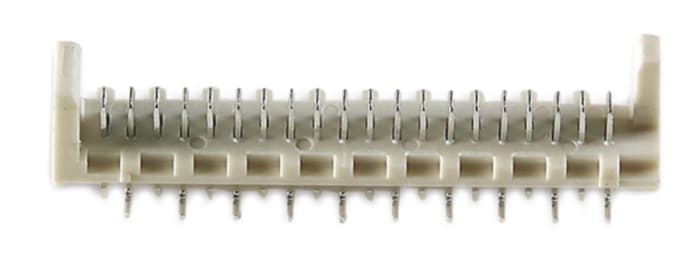

Molex Picoflex Series Straight Surface Pin Header, 10 Contact(s), 1.27 mm Pitch, 1 Row(s), Unshrouded
Technical Document
Specifications
Brand
MolexSeries
Picoflex
Product Type
Pin Header
Pitch
1.27mm
Current
1.2A
Number of Contacts
10
Housing Material
Thermoplastic
Number of Rows
1
Orientation
Straight
Shrouded/Unshrouded
Unshrouded
Connector System
Wire-to-Board
Mount Type
Surface
Contact Material
Brass
Contact Plating
Gold
Minimum Operating Temperature
-40°C
Row Pitch
1.27mm
Termination Type
Solder
Contact Gender
Male
Maximum Operating Temperature
105°C
Mating Pin Length
2.15mm
Standards/Approvals
No
Voltage
250 V
Distrelec Product Id
304-57-754
Product details
1.27 mm Pitch Picoflex Headers
A range of low profile 1.27 mm Pitch Picoflex Headers for use with 90327 Series housings, see stock number 324-8047 typical.
Fitted with friction lock, polarisation and stamped contacts with in-line flat tabs
Rigid solder tails require 0.8mm hole
Manufacturer Part Number Key:
90814-00xx: SMT, Tin, with PCB pegs
90814-06xx: SMT, Tin, no PCB pegs
90814-07xx: SMT, Tin, no PCB pegs
90814-08xx: SMT, Tin, with PCB pegs
90814-09xx: SMT, Tin, with PCB pegs
90814-38xx: SMT, Gold flash, with PCB pegs
90814-39xx: SMT, Gold flash, with PCB pegs
90325-00xx: Through hole, Tin, with PCB pegs
90325-30xx Through hole, Gold flash, with PCB pegs
90325-90xx: Through hole, Tin, with PCB pegs
93405-05xx: Reverse footprint, SMT, Tin, no PCB pegs
Approvals
UL (E29179); CSA (LR19980-181)
1.27mm Wire to Board IDT - Molex Picoflex PF-50 Series
The Picoflex Series from Molex is a reliable range of Wire to Board connectors offering designers more options for high-density applications where standard discrete wire and flat flexible connectors are not appropriate. Picoflex IDT connectors are ideal for automotive and consumer electronics industries.
