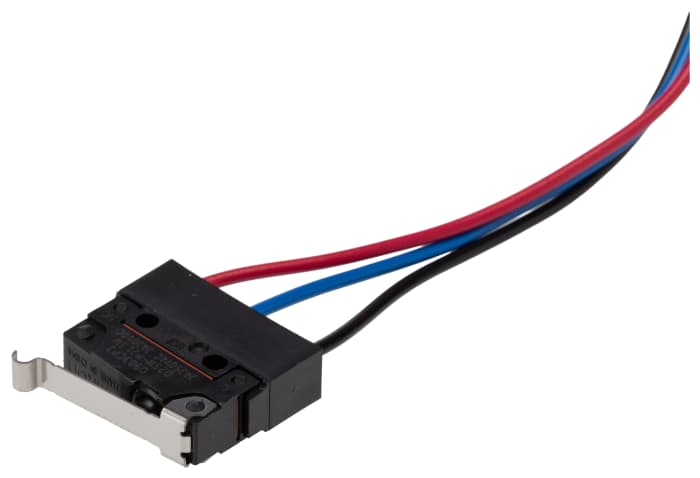

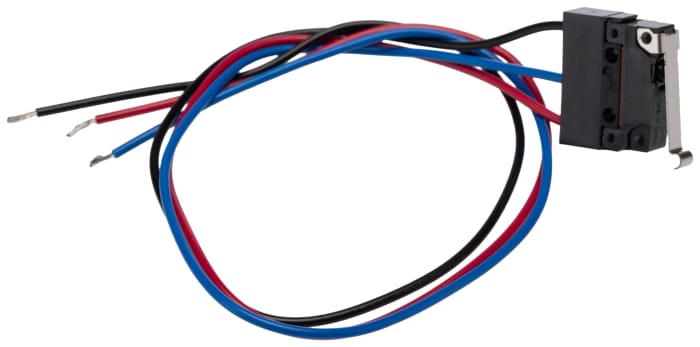

Omron Simulated Roller Lever Micro Switch, Pre-Wired Terminal, 2A, 250 V ac, 30 V dc, SPDT, IP67

Name: Omron Simulated Roller Lever Micro Switch, Pre-Wired Terminal, 2A, 250 V ac, 30 V dc, SPDT, IP67
Brand: Omron
SKU: 6866809
Availability: LimitedAvailability

RS Stock No.: 686-6809Brand: OmronManufacturers Part No.: D2SW-P2L3M

View all in Micro Switches

Technical Documents

Specifications

Brand

Omron

Product Type

Micro Switch

Actuator Type

Simulated Roller Lever

Terminal Type

Pre-Wired

Contact Configuration

SPDT

IP Rating

IP67

Operating Force

0.6N

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

70°C

Microswitch Type

Sealed Subminiature

Contact DC Voltage

30V dc

Contact AC Voltage

250V ac

Mechanical Life

1000000Operations

Hazardous Area Certification

Standards/Approvals

RoHS

Series

D2SW-P

Product Details

Sealed Miniature Microswitches

High quality sealed miniature microswitch in industry standard V4 housing

Monoblock construction assures high sealing capability and is ideal for dusty places or where water is sprayed
IEC IP50 rated (solder/pcb terminal), IEC IP67 rated (wire lead )
RoHS compliant
Contact rating: 3A@30Vdc/125Vac, 2A@250Vac
Contact configuration: SPDT
Operating temperature range: -40 to +80°C

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

Download and use our DesignSpark software for your PCB and 3D Mechanical designs
View and contribute website content and forums
Download 3D Models, Schematics and Footprints from more than a million products

Click here to find out more

View all in Micro Switches

Stock information temporarily unavailable.

48.80 MOP

48.85 MOP Each (ex VAT)

Omron Simulated Roller Lever Micro Switch, Pre-Wired Terminal, 2A, 250 V ac, 30 V dc, SPDT, IP67

Select packaging type

Standard

48.80 MOP

48.85 MOP Each (ex VAT)

Omron Simulated Roller Lever Micro Switch, Pre-Wired Terminal, 2A, 250 V ac, 30 V dc, SPDT, IP67

Stock information temporarily unavailable.

Select packaging type

Standard

quantity	Unit price
1 - 49	48.85 MOP
50+	46.37 MOP
