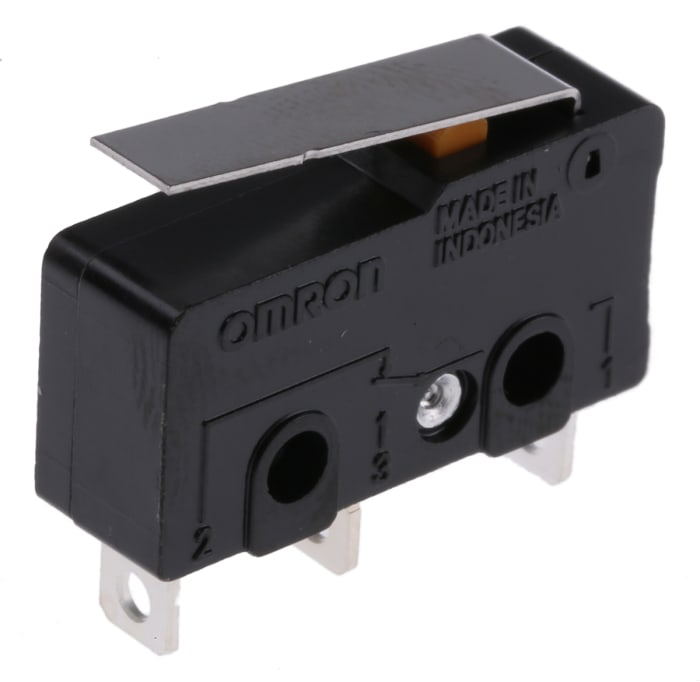

Omron Hinge Lever Micro Switch, Solder Terminal, 10.1A, 250 V ac, SPDT, IP40

Name: Omron Hinge Lever Micro Switch, Solder Terminal, 10.1A, 250 V ac, SPDT, IP40
Brand: Omron
SKU: 6866843P
Availability: LimitedAvailability

RS Stock No.: 686-6843PBrand: OmronManufacturers Part No.: SS-10GL

View all in Micro Switches

Technical Documents

Specifications

Brand

Omron

Product Type

Micro Switch

Actuator Type

Hinge Lever

Terminal Type

Solder

Switch Contact Current

10.1A

Contact Configuration

SPDT

IP Rating

IP40

Operating Force

0.49N

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

85°C

Microswitch Type

Subminiature

Contact AC Voltage

250V ac

Mechanical Life

10000000Operations

Hazardous Area Certification

Standards/Approvals

RoHS

Series

Product Details

Omron SS Subminiature Basic Switch (10.1 A)

Incorporating simple and stable two split springs which enable a long service life (30,000,000 operations)
A variety of models with low operating force to high operating force are available
Solder, quick connect terminals (#110) and PCB terminals are available

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

Download and use our DesignSpark software for your PCB and 3D Mechanical designs
View and contribute website content and forums
Download 3D Models, Schematics and Footprints from more than a million products

Click here to find out more

View all in Micro Switches

Stock information temporarily unavailable.

17.60 MOP

17.62 MOP Each (Supplied in a Box) (ex VAT)

Omron Hinge Lever Micro Switch, Solder Terminal, 10.1A, 250 V ac, SPDT, IP40

Select packaging type

17.60 MOP

17.62 MOP Each (Supplied in a Box) (ex VAT)

Omron Hinge Lever Micro Switch, Solder Terminal, 10.1A, 250 V ac, SPDT, IP40

Stock information temporarily unavailable.

Select packaging type

quantity	Unit price
1 - 49	17.62 MOP
50 - 149	17.00 MOP
150 - 249	16.59 MOP
250 - 499	16.49 MOP
500+	15.56 MOP
