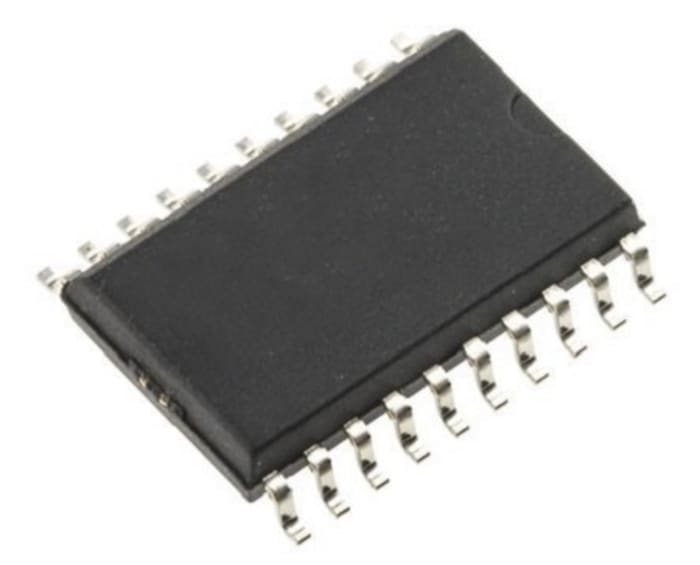

onsemi, Voltage Level Translator Transceiver 1 Buffer, 20-Pin SOIC

RS Stock No.: 186-7236Brand: onsemiManufacturers Part No.: 74ACT245SC
brand-logo
View all in Translator ICs

Technical Document

Specifications

Brand

onsemi

Logic Family

ACT

Product Type

Voltage Level Translator

Direction Type

Bi-Directional

Maximum Propagation Delay Time @ CL

9ns

Mount Type

Surface

Package Type

SOIC

Number of Elements per Chip

1

Pin Count

20

Output Type

3 State

Logic Function

Transceiver

Maximum Low Level Output Current

24mA

Minimum Supply Voltage

4.5V

Maximum High Level Output Current

-24mA

Maximum Supply Voltage

5.5V

Translation

Buffer

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Width

7.6 mm

Height

2.35mm

Length

13mm

Standards/Approvals

No

Series

74ACT245
