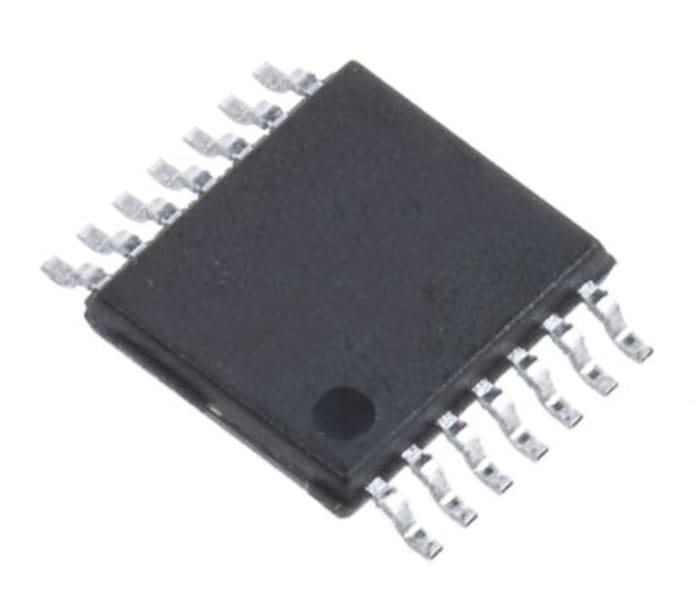

onsemi, 6 6-Input Buffer Logic Gate, 14-Pin TSSOP
Technical Document
Specifications
Brand
onsemiProduct Type
Logic Gate
Logic Function
Buffer
Mount Type
Surface
Number of Elements
6
Number of Inputs per Gate
6
Schmitt Trigger Input
No
Package Type
TSSOP
Pin Count
14
Logic Family
LCX
Input Type
CMOS
Maximum Propagation Delay Time @ CL
3ns
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
85°C
Minimum Supply Voltage
2V
Height
1.05mm
Length
5.1mm
Standards/Approvals
No
Maximum Supply Voltage
5.5V
Maximum Low Level Output Current
32mA
Automotive Standard
No
Output Type
Open Drain
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
3,312.40 MOP
1.325 MOP Each (On a Reel of 2500) (ex VAT)
2500
3,312.40 MOP
1.325 MOP Each (On a Reel of 2500) (ex VAT)
Stock information temporarily unavailable.
2500
| quantity | Unit price | Per Reel |
|---|---|---|
| 2500 - 2500 | 1.325 MOP | 3,312.44 MOP |
| 5000 - 7500 | 1.298 MOP | 3,246.18 MOP |
| 10000+ | 1.272 MOP | 3,181.15 MOP |
