Technical Documents
Specifications
Brand
OptekProduct Type
Optocoupler
Mount Type
Through Hole
Maximum Forward Voltage
1.5V
Number of Pins
5
Input Current Type
DC
Typical Rise Time
2μs
Maximum Input Current
150mA
Isolation Voltage
15kV dc
Minimum Operating Temperature
-55°C
Maximum Current Transfer Ratio
50%
Maximum Operating Temperature
100°C
Typical Fall Time
2μs
Minimum Current Transfer Ratio
20%
Standards/Approvals
UL recognised file No. E58730
Series
OPI120
Automotive Standard
No
Country of Origin
Mexico
Product Details

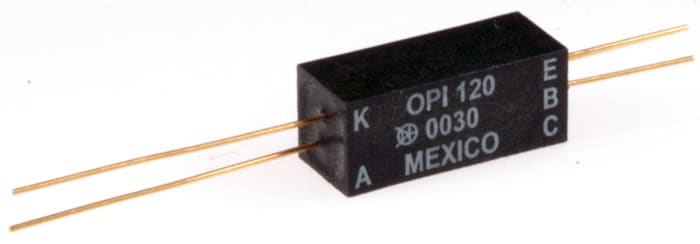

The OPI120 and OPI123 series of optically coupled isolators consist of an IR LED and an NPN silicon photosensor. They both contain an 890 nm IR LED. The OPI120 has an NPN phototransistor sensor and the OPI123 has a photodarlington sensor.
This family come in a hermetically sealed housing which is opaque with a transmissive path between the IR LED and the photosensor.
Suitable applications for the OPI120 and OPI123 series include; high voltage isolation between input and output, electrical isolation, and industrial, medical and office equipment.
Stock information temporarily unavailable.
96.10 MOP
96.15 MOP Each (ex VAT)
1
96.10 MOP
96.15 MOP Each (ex VAT)
Stock information temporarily unavailable.
1
| quantity | Unit price |
|---|---|
| 1 - 6 | 96.15 MOP |
| 7+ | 93.26 MOP |
