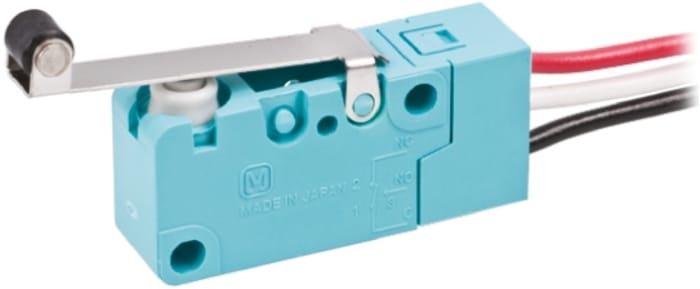

Panasonic Roller Lever Micro Switch, Pre-Wired Terminal, 5A, 250 V ac, 24 V dc, SPCO, IP67

Name: Panasonic Roller Lever Micro Switch, Pre-Wired Terminal, 5A, 250 V ac, 24 V dc, SPCO, IP67
Brand: Panasonic
SKU: 6990375
Availability: LimitedAvailability

RS Stock No.: 699-0375Brand: PanasonicManufacturers Part No.: ABV1616503

View all in Micro Switches

Technical Documents

Specifications

Brand

Panasonic

Product Type

Micro Switch

Actuator Type

Roller Lever

Terminal Type

Pre-Wired

Switch Contact Current

Contact Configuration

SPCO

Housing Material

Polypropylene Homopolymer

IP Rating

IP67

Operating Force

1.18N

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Contact DC Voltage

24V dc

Microswitch Type

Miniature

Contact AC Voltage

250V ac

Length

33mm

Mechanical Life

5Operations

Hazardous Area Certification

Standards/Approvals

CSA, RoHS, SEMKO, UL, VDE

Series

ABV

Country of Origin

Japan

Product Details

ABV Type Miniature Turquoise Microswitch

These miniature microswitches are sealed and have a high environmental resistance. Microswitches with wire leads conform to IP67.

Elastomer double moulding technology and ultrasonic swaging technology contribute to uniform sealing
Typical applications include home appliances and automotive
