Technical Documents
Specifications
Brand
RS ProProduct Type
Tantalum Electrolytic Capacitor
Technology
Electrolytic
Capacitance
100μF
Voltage
6.3V dc
Mount Type
Through Hole
Package/Case
E
Polarity
Positive
Automotive Standard
No
Tolerance ±
-20%
Terminal Type
Solder
Pin Count
2
Minimum Operating Temperature
-55°C
Hermetic Seal
No
Maximum Operating Temperature
125°C
Height
13mm
Depth
8.5mm
Length
8.5mm
Standards/Approvals
RoHS
Series
RS PRO
Electrolyte Type
Solid
Leakage Current
500nA
Surge Voltage
8V
Dissipation Factor
0.1%
Country of Origin
China
Product Details

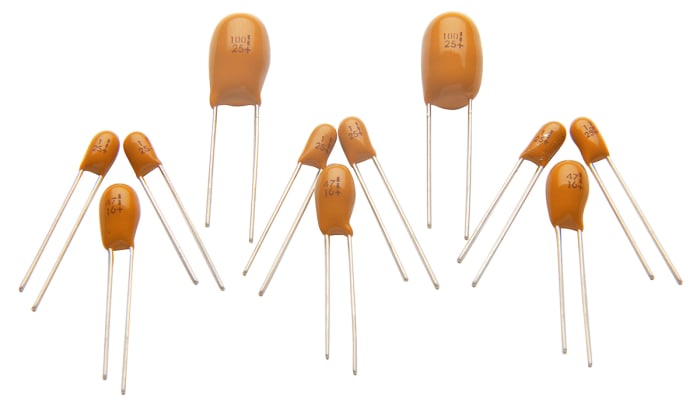

The RS PRO CB series 100μf epoxy-coated solid electrolytic tantalum capacitor has 6.3VDC voltage rating with a leakage current of 500nA. It has dimensions of 8.5mm x 8.5mm x 13mm x 0.5mm (L x D x H x lead diameter).
Stock information temporarily unavailable.
113.00 MOP
11.305 MOP Each (In a Pack of 10) (ex VAT)
Standard
10
113.00 MOP
11.305 MOP Each (In a Pack of 10) (ex VAT)
Stock information temporarily unavailable.
Standard
10
| quantity | Unit price | Per Pack |
|---|---|---|
| 10 - 60 | 11.305 MOP | 113.05 MOP |
| 70 - 340 | 11.047 MOP | 110.47 MOP |
| 350+ | 9.11 MOP | 91.10 MOP |
