Technical Documents
Specifications
Brand
RS ProNumber of Contacts
12
Product Type
Circular Connector
Mount Type
Cable
Connector Size
Standard
Current
5A
Plug/Socket
Socket
Contact Gender
Female
IP Rating
IP68
Series
SP21
Orientation
Straight
Voltage
400V
Mating Type
Threaded
Shell Size
21 mm
Minimum Operating Temperature
-40°C
Termination Type
Solder
Maximum Operating Temperature
85°C
Housing Material
Polyamide 66, Polycarbonate
Pole Format
12
Standards/Approvals
No
Contact Plating
Gold
Contact Material
Brass
Country of Origin
China

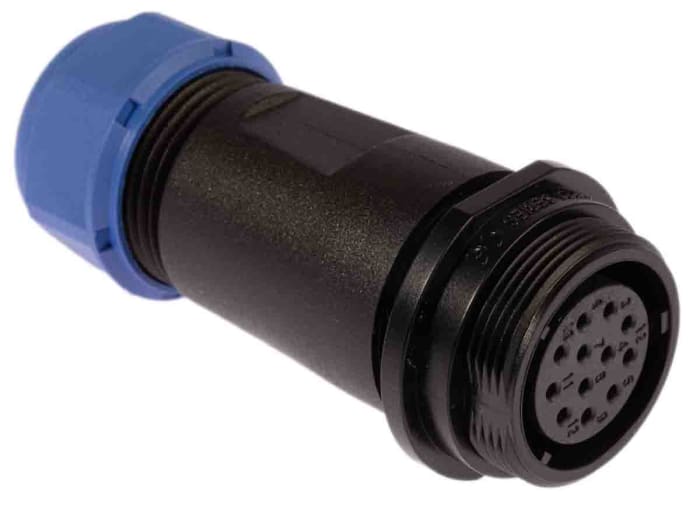

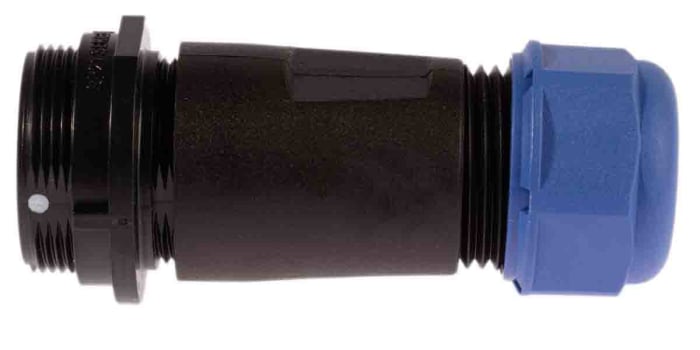

Product Details
For a suitable alternative please see RS PRO 304-676
From RS Pro, these threaded plugs and sockets are serious contenders for your application. This particular model has a bigger and stronger shell. That coupled with the IP68 rating excels in harsh environments. When choosing a male or female connector, this version should really be one you consider.
This product could be provided in either blue/black or and all black variant
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
135.40 MOP
135.41 MOP Each (ex VAT)
1
135.40 MOP
135.41 MOP Each (ex VAT)
Stock information temporarily unavailable.
1
| quantity | Unit price |
|---|---|
| 1 - 9 | 135.41 MOP |
| 10 - 49 | 130.67 MOP |
| 50 - 99 | 125.82 MOP |
| 100 - 499 | 121.91 MOP |
| 500+ | 100.27 MOP |
