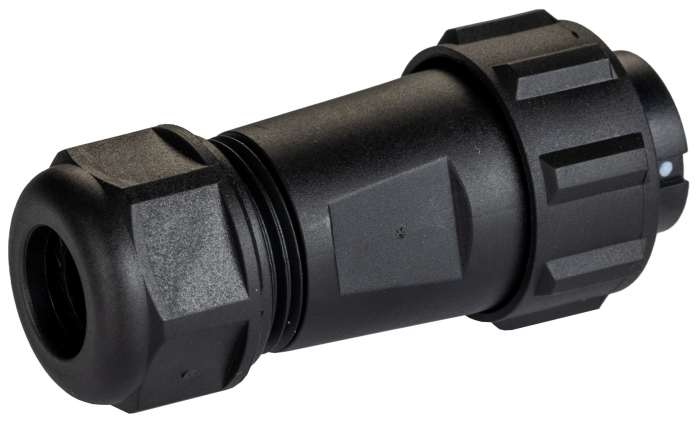

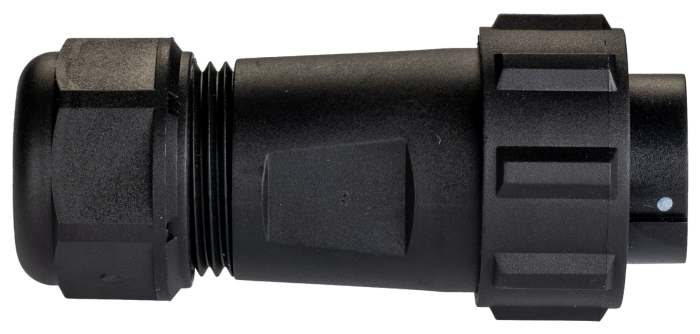

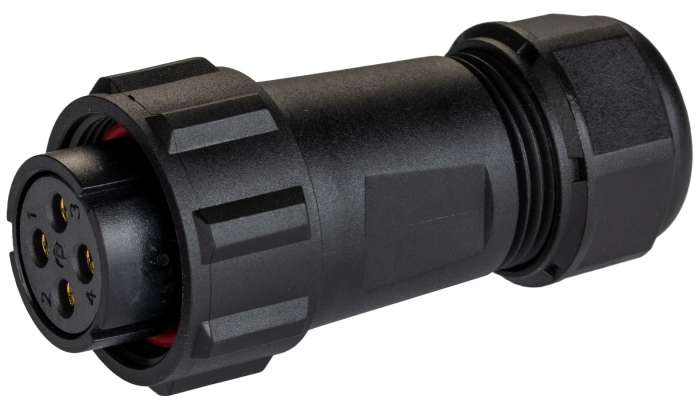

RS PRO Circular Connector, 4 Contacts, Cable, Standard Connector, Plug, Female, IP68, SP21 Series

RS Stock No.: 131-6384Brand: RS PRO
brand-logo
View all in Industrial Circular Connectors

Technical Document

Specifications

Brand

RS Pro

Number of Contacts

4

Product Type

Circular Connector

Mount Type

Cable

Connector Size

Standard

Current

30A

Plug/Socket

Plug

Contact Gender

Female

IP Rating

IP68

Series

SP21

Orientation

Straight

Voltage

500 V

Minimum Operating Temperature

-40°C

Termination Type

Solder

Mating Type

Threaded

Shell Size

21 mm

Maximum Operating Temperature

85°C

Housing Material

Polyamide 66, Polycarbonate

Pole Format

4

Standards/Approvals

No

Contact Plating

Gold

Contact Material

Brass

Country of Origin

China

Product details

Cable Socket 30A Circular Connectors (Threaded) IP68

Cable Connector Sockets with Threaded Coupling
High-quality Circular Connectors
Waterproof IP68 rating
Panel Hole Cutout Size 21 mm
Maximum Current Rating 30 A
Solder Contact Termination
