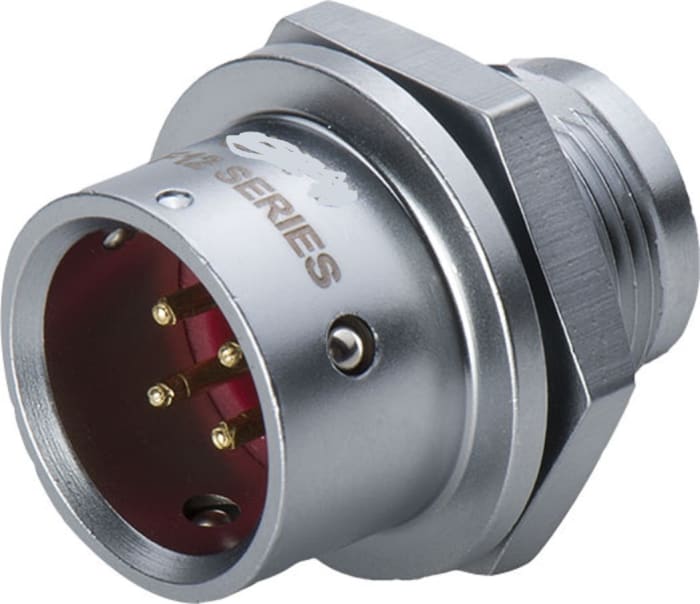

RS PRO Circular Connector, 4 Contacts, Front, M12 Connector, Socket, Male, IP67, SF12 Series

Name: RS PRO Circular Connector, 4 Contacts, Front, M12 Connector, Socket, Male, IP67, SF12 Series
Brand: RS PRO
SKU: 1246725
Availability: LimitedAvailability

RS Stock No.: 124-6725Brand: RS PRODistrelec Article No.: 30047787

View all in Industrial Circular Connectors

Technical Documents

Specifications

Brand

RS Pro

Number of Contacts

Product Type

Circular Connector

Mount Type

Front

Connector Size

M12

Current

Plug/Socket

Socket

Contact Gender

Male

IP Rating

IP67

Series

SF12

Orientation

Straight

Voltage

200V

Mating Type

Push Pull

Shell Size

12 mm

Minimum Operating Temperature

-40°C

Termination Type

Solder

Housing Material

Chrome Plated Brass

Maximum Operating Temperature

85°C

Pole Format

Standards/Approvals

Contact Plating

Gold

Contact Material

Brass

Country of Origin

China

Product Details

M12 Push-Pull Front Mount

From RS Pro, these push-pull plugs & sockets are serious contenders for your application. The convenient push-pull connection, makes it perfect in situations where accidental disconnects occur. That coupled with the IP67 rating, makes sure that this industrial connector excels in harsh environments. When choosing a male or female connector, this version should really be one you consider.

Features & Benefits

• Panel hole cutout diameter: 12 mm
• 2 way, 3 way, 4 way and 5 way all available
• Cable outer diameter: 4 mm to 6.5 mm. And 5 mm to 8 mm
• Solder termination
• Chrome plated brass shell material
• Front Mounted
• Gender: Male & Female
