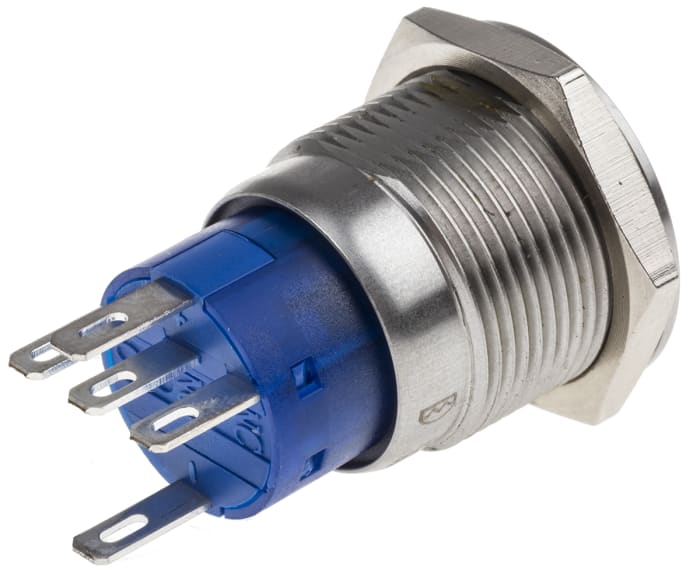

RS PRO Illuminated Push Button Switch, Latching, Panel, 19 mm Cutout, SPST, White LED, IP67 250 V

RS Stock No.: 111-3901Brand: RS PRO
brand-logo
View all in Push Button Switches

Technical Document

Specifications

Brand

RS Pro

Actuator Colour

Silver

Product Type

Push Button Switch

Switch Operation

Latching

Illuminated

Yes

Panel Cutout Size

19 mm

Mount Type

Panel

Contact Configuration

SPST

Terminal Type

Solder Pin

LED Colour

White

IP Rating

IP67

Minimum Operating Temperature

-20°C

Contact AC Voltage

250V

Actuator Style

Round

Maximum Operating Temperature

55°C

Switch Configuration

1 NO/1 NC

Switch Contact Current

5 A

Standards/Approvals

UL 94-V0, UL 94-V2

Legend

Power Symbol

Country of Origin

China

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

design-spark
design-spark
  • Download and use our DesignSpark software for your PCB and 3D Mechanical designs
  • View and contribute website content and forums
  • Download 3D Models, Schematics and Footprints from more than a million products
Click here to find out more
View all in Push Button Switches

Stock information temporarily unavailable.

129.40 MOP

129.43 MOP Each (ex VAT)

RS PRO Illuminated Push Button Switch, Latching, Panel, 19 mm Cutout, SPST, White LED, IP67 250 V

1

Available in multiples of 1
1129.40 MOP
2258.90 MOP
3388.30 MOP
4517.70 MOP
5647.20 MOP
6776.60 MOP
7906.00 MOP
81,035.40 MOP
91,164.90 MOP
101,263.40 MOP
111,389.70 MOP
121,516.10 MOP
131,642.40 MOP
141,768.80 MOP
151,895.10 MOP

129.40 MOP

129.43 MOP Each (ex VAT)

RS PRO Illuminated Push Button Switch, Latching, Panel, 19 mm Cutout, SPST, White LED, IP67 250 V

Stock information temporarily unavailable.

1

Available in multiples of 1
1129.40 MOP
2258.90 MOP
3388.30 MOP
4517.70 MOP
5647.20 MOP
6776.60 MOP
7906.00 MOP
81,035.40 MOP
91,164.90 MOP
101,263.40 MOP
111,389.70 MOP
121,516.10 MOP
131,642.40 MOP
141,768.80 MOP
151,895.10 MOP

quantityUnit price
1 - 9129.43 MOP
10 - 24126.34 MOP
25 - 49123.35 MOP
50 - 249120.47 MOP
250+99.13 MOP
